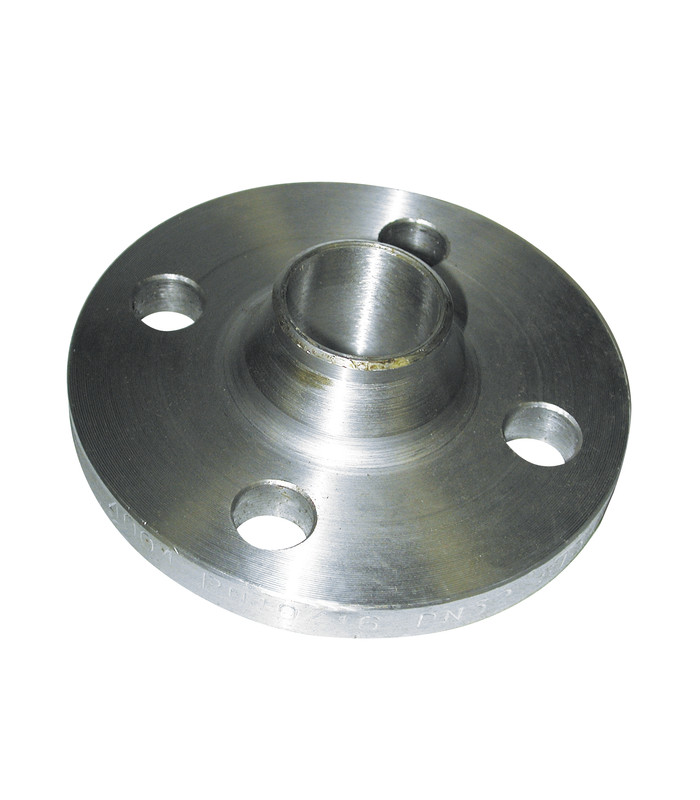

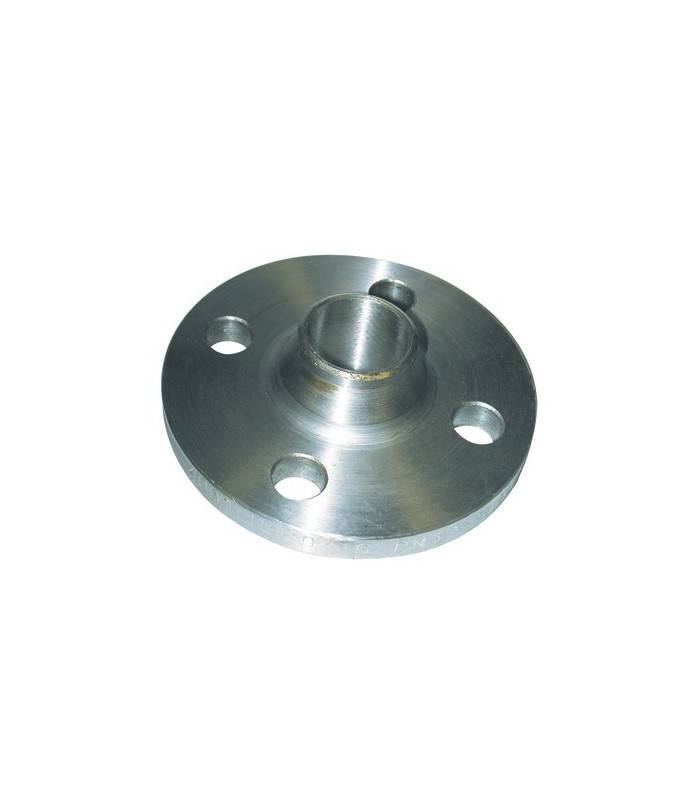

Collar flange to be welded steel DN40- DIFF - 110972

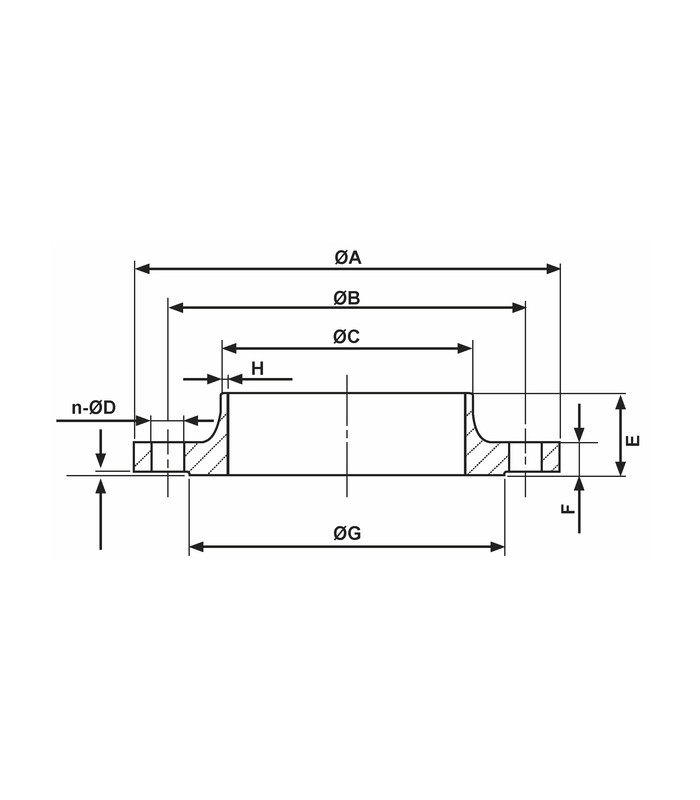

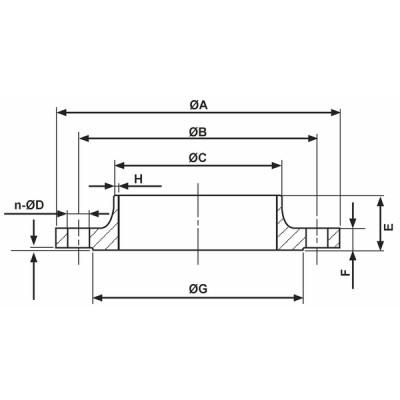

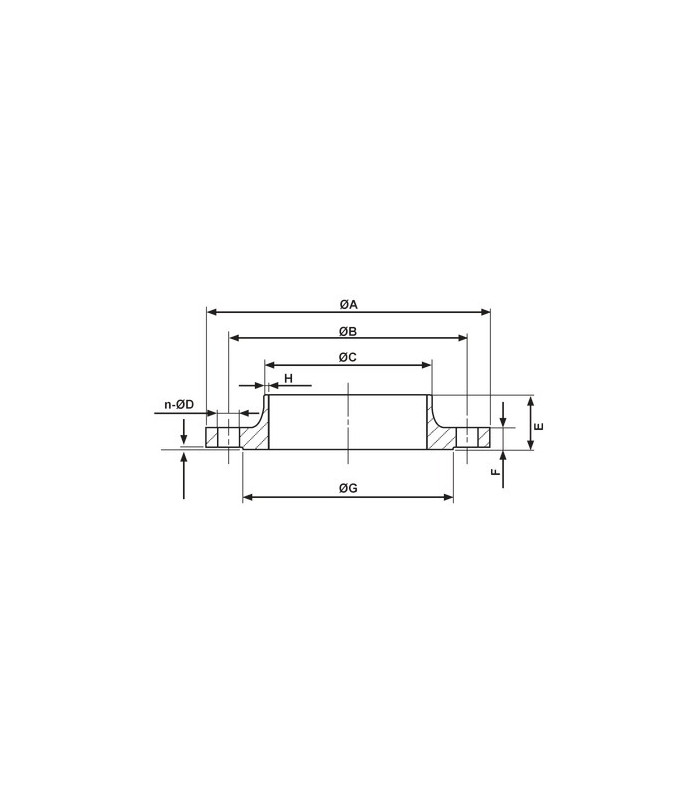

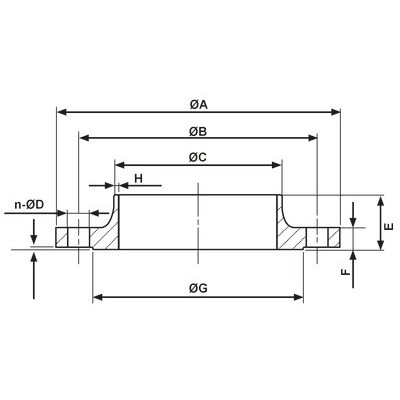

| F (mm) | 18.0 | |
| Fixation | M16 | |
| H (mm) | 2.6 | |
| Ø | 88 | |
| DN | 40.0 | |
| E (mm) | 45.0 | |
| D (mm) | 18.0 | |
| A (mm) | 150.0 | |
| Application | PN : 10-40 | |
| B (mm) | 110.0 | |
| C (mm) | 48.3 | |
| G (mm) | 88 | |
| Nombre | 4 | |
| Norme | EN1092_1 | |
| Type | BW11/B | |
| Hauteur emballage (m) | 0.045 | |
| Largeur emballage (m) | 0.15 | |
| Longueur emballage (m) | 0.15 | |
| Poids emballage (kg) | 2 |
110972
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- F (mm)
- 18.0
- Fixation
- M16
- H (mm)
- 2.6
- Ø
- 88
- DN
- 40.0
- E (mm)
- 45.0
- D (mm)
- 18.0
- A (mm)
- 150.0
- Application
- PN : 10-40
- B (mm)
- 110.0
- C (mm)
- 48.3
- G (mm)
- 88
- Nombre
- 4
- Norme
- EN1092_1
- Type
- BW11/B
- Hauteur emballage (m)
- 0.045
- Largeur emballage (m)
- 0.15
- Longueur emballage (m)
- 0.15
- Poids emballage (kg)
- 2
