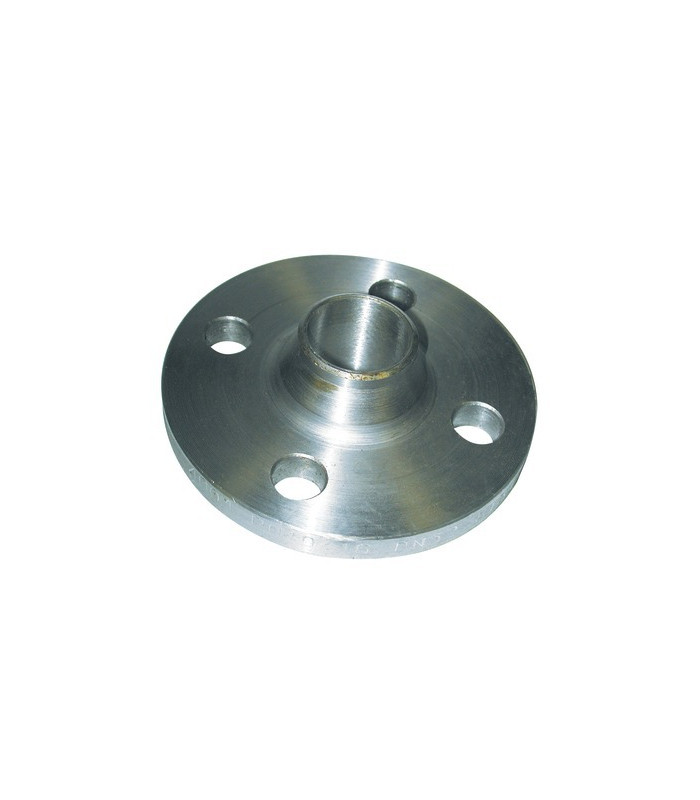

Collar flange to be welded steel DN125M- DIFF - 110974

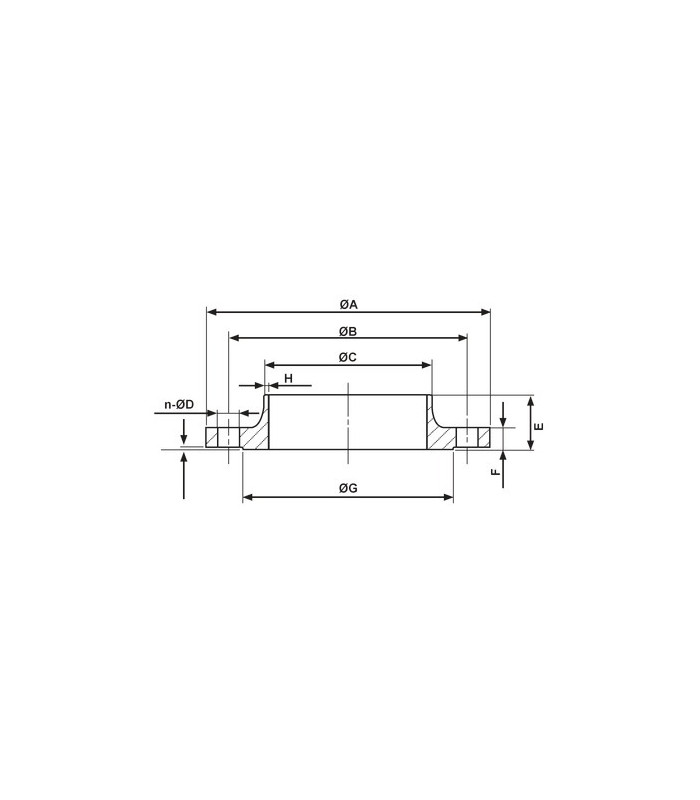

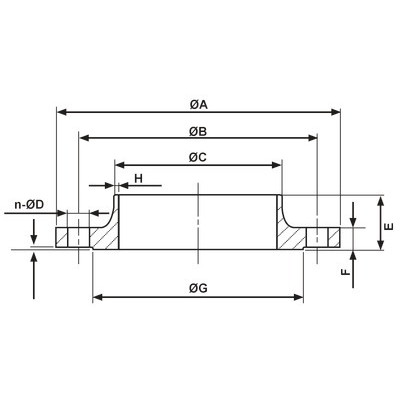

| F (mm) | 22.0 | |
| Fixation | M16 | |
| H (mm) | 4.0 | |
| Ø | 188 | |
| DN | 125.0 | |
| E (mm) | 55.0 | |
| D (mm) | 18.0 | |
| A (mm) | 250 | |
| Application | PN : 10-16 | |
| B (mm) | 210.0 | |
| C (mm) | 133.0 | |
| G (mm) | 188 | |
| Nombre | 8 | |
| Norme | EN1092_1 | |
| Type | BW11/B | |
| Hauteur emballage (m) | 0.055 | |
| Largeur emballage (m) | 0.25 | |
| Longueur emballage (m) | 0.25 | |
| Poids emballage (kg) | 6.56 |
110974
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- F (mm)
- 22.0
- Fixation
- M16
- H (mm)
- 4.0
- Ø
- 188
- DN
- 125.0
- E (mm)
- 55.0
- D (mm)
- 18.0
- A (mm)
- 250
- Application
- PN : 10-16
- B (mm)
- 210.0
- C (mm)
- 133.0
- G (mm)
- 188
- Nombre
- 8
- Norme
- EN1092_1
- Type
- BW11/B
- Hauteur emballage (m)
- 0.055
- Largeur emballage (m)
- 0.25
- Longueur emballage (m)
- 0.25
- Poids emballage (kg)
- 6.56
