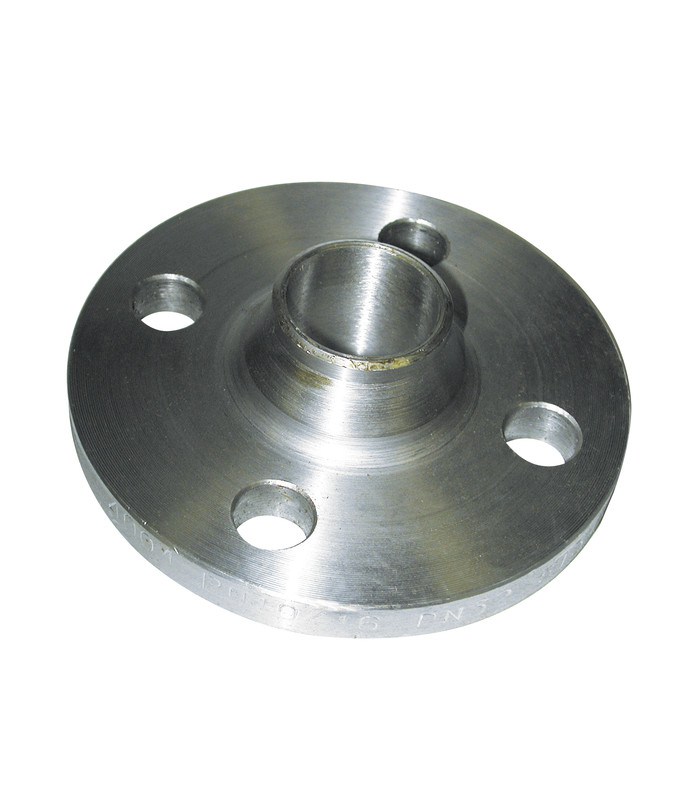

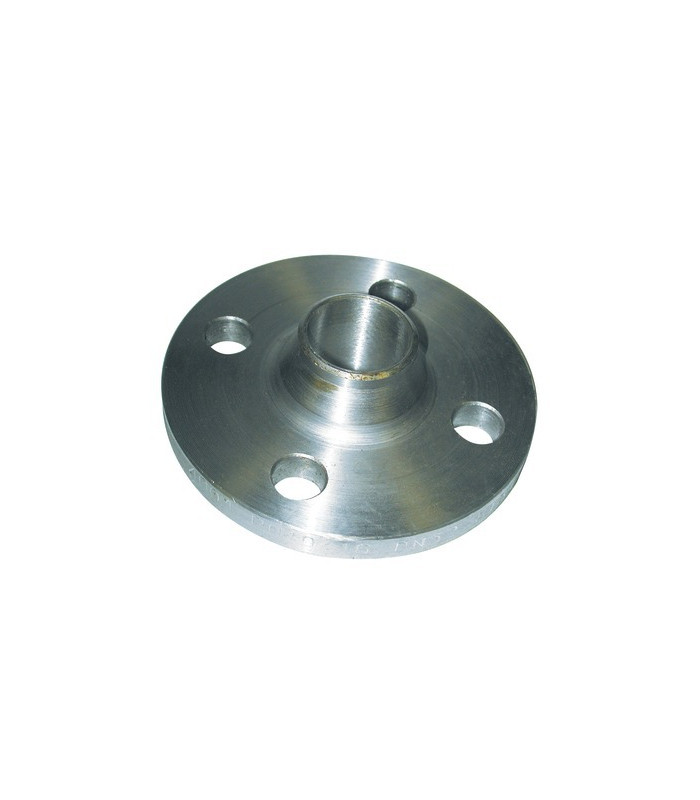

Collar flange to be welded steel DN150M- DIFF - 110975

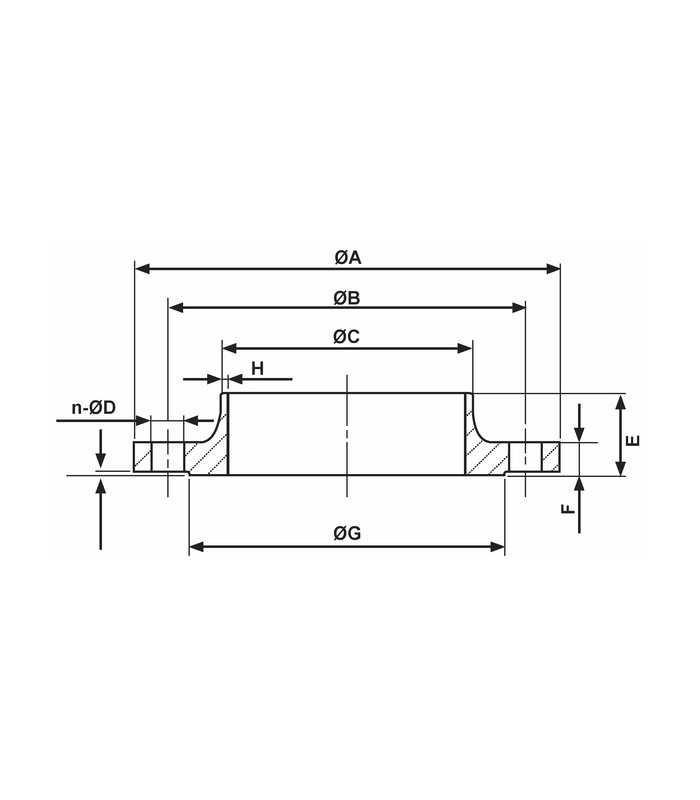

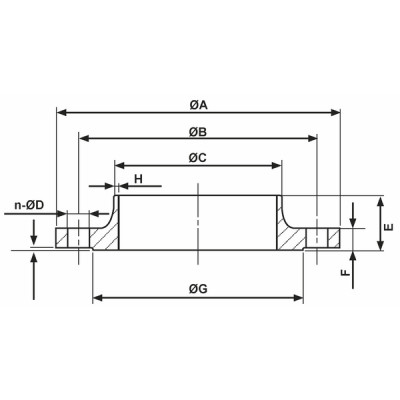

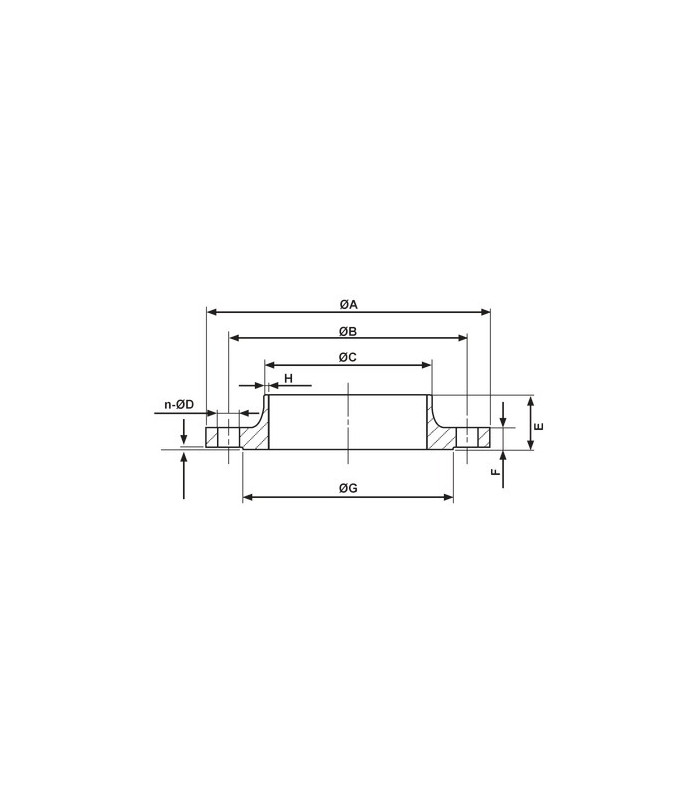

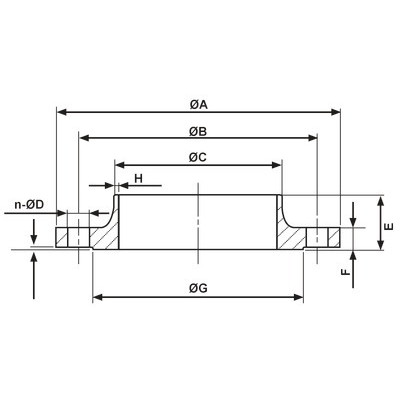

| F (mm) | 22.0 | |
| Fixation | M20 | |
| H (mm) | 4.5 | |
| Ø | 212 | |
| DN | 150.0 | |
| E (mm) | 55.0 | |
| D (mm) | 22.0 | |
| A (mm) | 285.0 | |
| Application | PN : 10-16 | |
| B (mm) | 240.0 | |
| C (mm) | 159.0 | |
| G (mm) | 212 | |
| Nombre | 8 | |
| Norme | EN1092_1 | |
| Type | BW11/B | |
| Hauteur emballage (m) | 0.055 | |
| Largeur emballage (m) | 0.285 | |
| Longueur emballage (m) | 0.285 | |
| Poids emballage (kg) | 7.8 |
