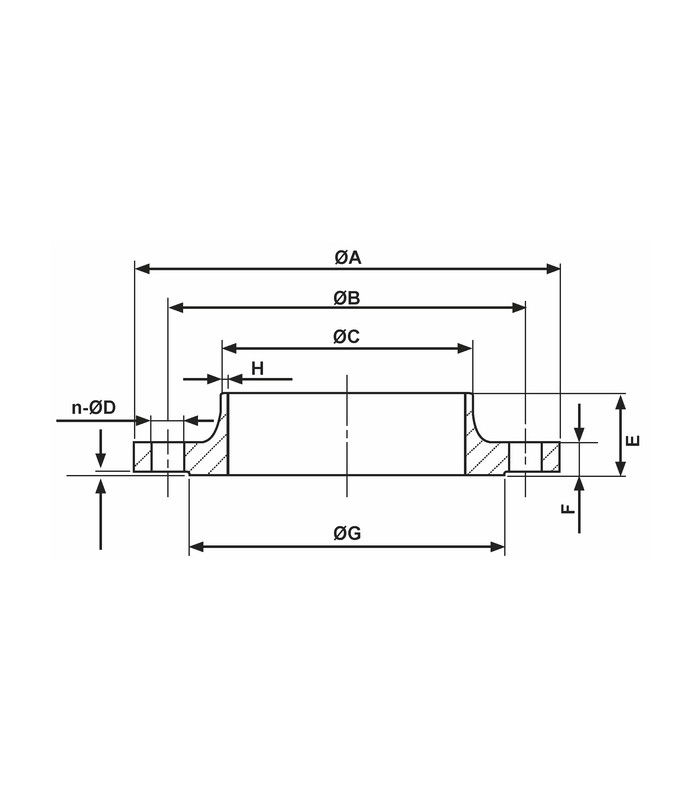

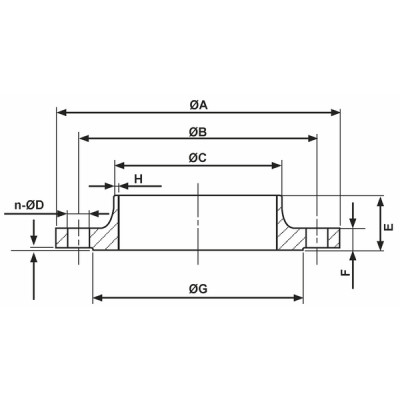

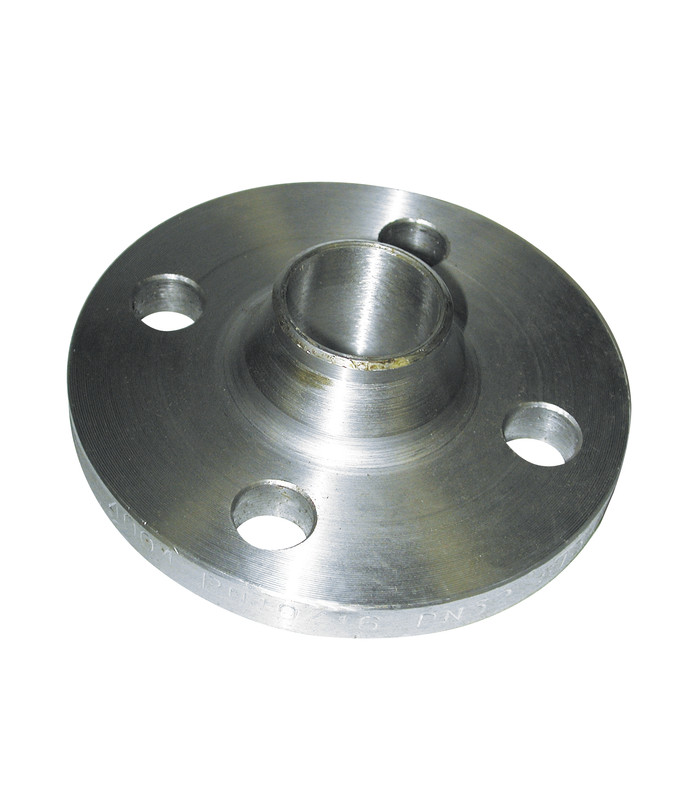

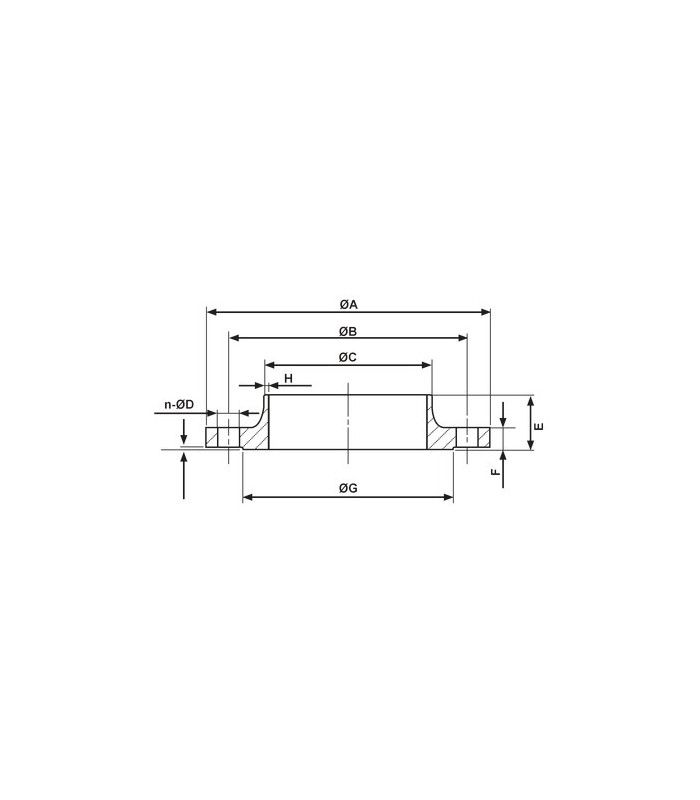

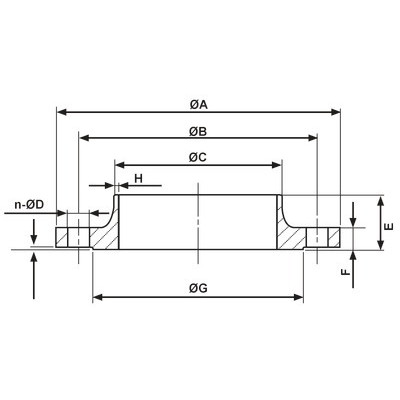

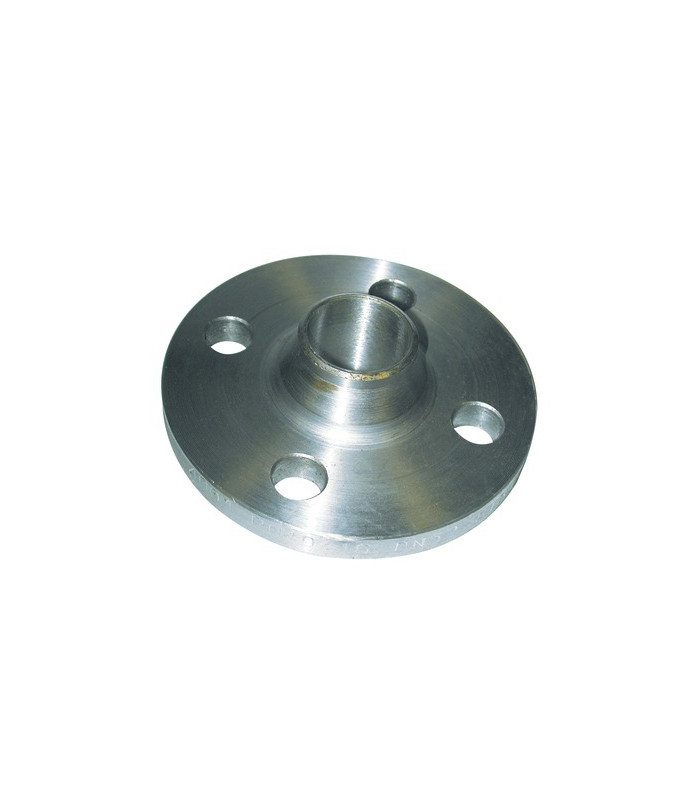

Collar flange to be welded steel DN200- DIFF - 110976
| F (mm) | 24.0 | |
| Fixation | M20 | |
| H (mm) | 6.3 | |
| Ø | 268 | |
| DN | 200.0 | |
| E (mm) | 62.0 | |
| D (mm) | 22.0 | |
| A (mm) | 340 | |
| B (mm) | 295.0 | |
| C (mm) | 219.1 | |
| G (mm) | 268 | |
| Nombre | 8 | |
| Norme | EN1092_1 | |
| Type | BW11/B | |
| Hauteur emballage (m) | 0.062 | |
| Largeur emballage (m) | 0.34 | |
| Longueur emballage (m) | 0.34 | |
| Poids emballage (kg) | 11 |
110976
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- F (mm)
- 24.0
- Fixation
- M20
- H (mm)
- 6.3
- Ø
- 268
- DN
- 200.0
- E (mm)
- 62.0
- D (mm)
- 22.0
- A (mm)
- 340
- B (mm)
- 295.0
- C (mm)
- 219.1
- G (mm)
- 268
- Nombre
- 8
- Norme
- EN1092_1
- Type
- BW11/B
- Hauteur emballage (m)
- 0.062
- Largeur emballage (m)
- 0.34
- Longueur emballage (m)
- 0.34
- Poids emballage (kg)
- 11
