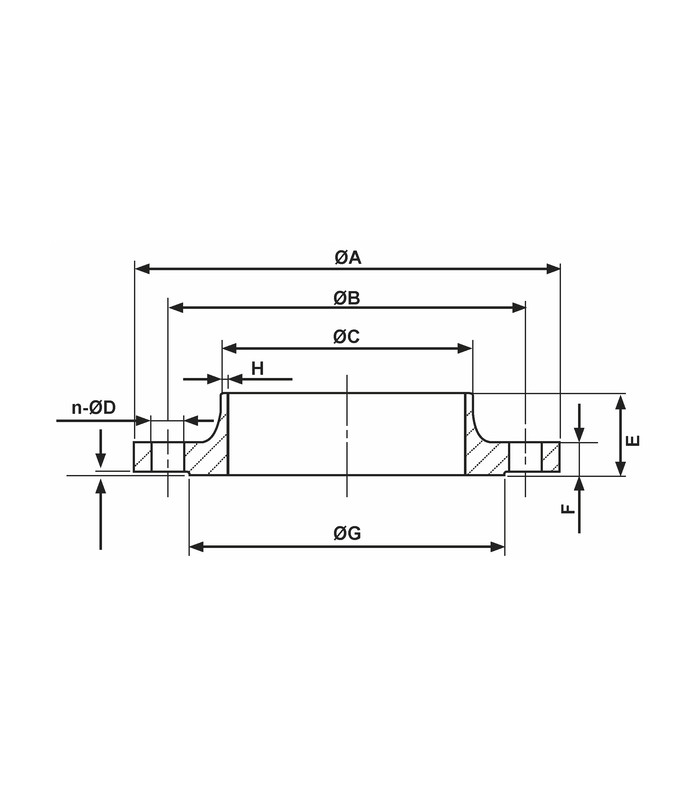

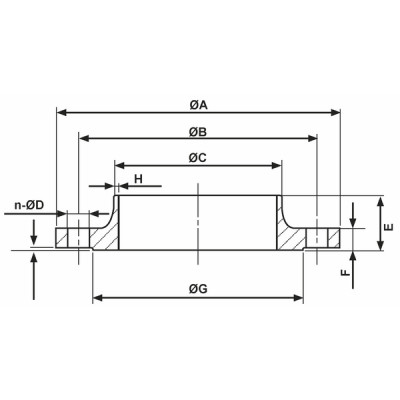

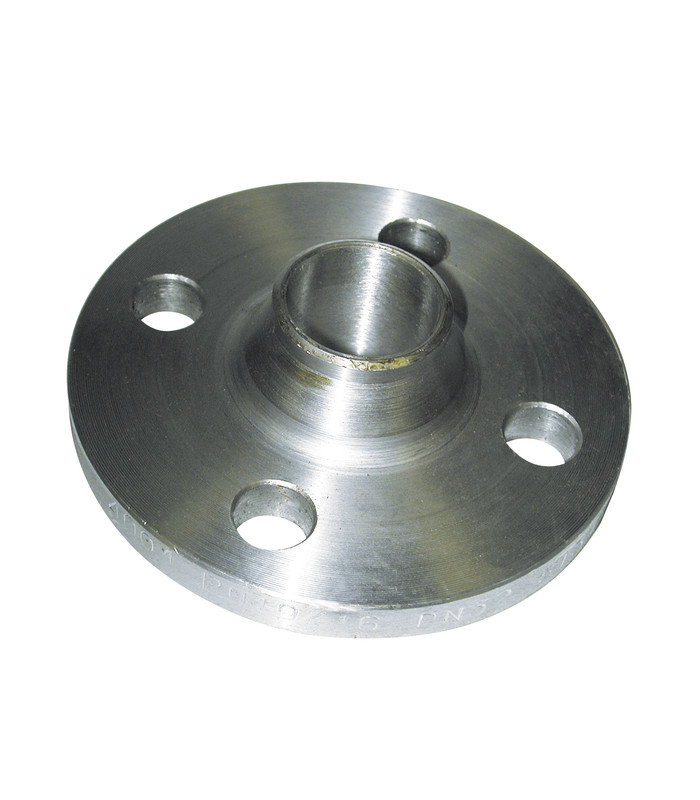

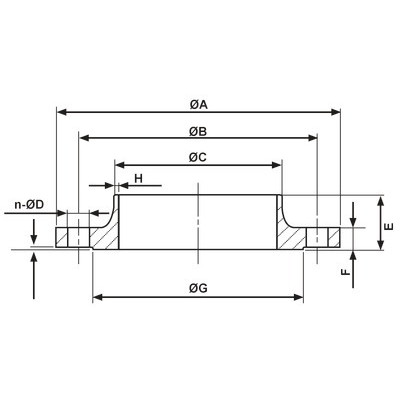

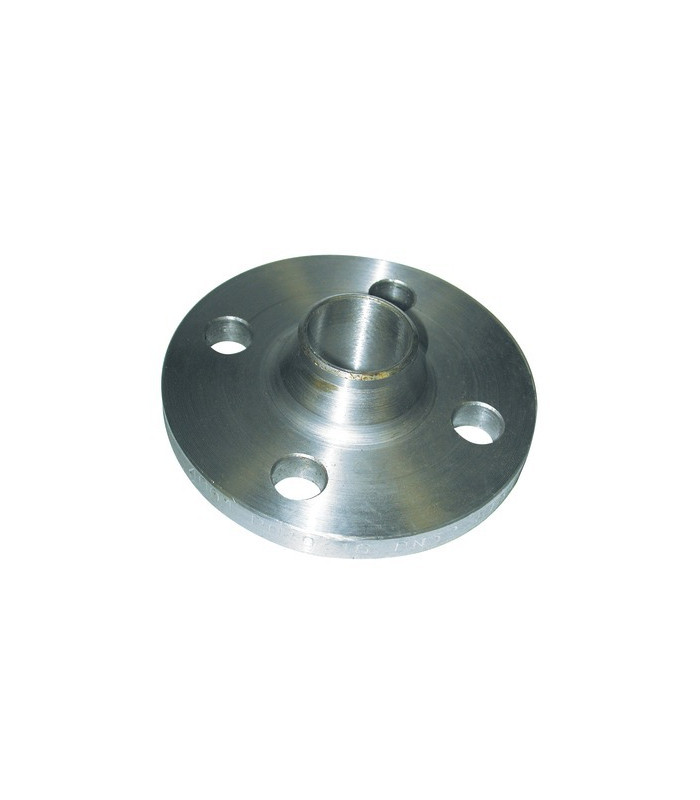

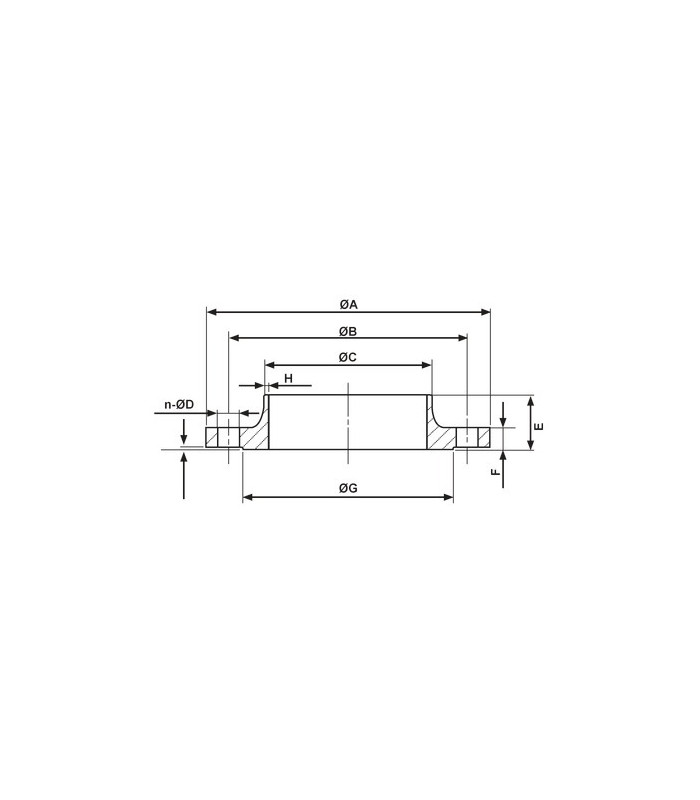

Collar flange to be welded steel DN200- DIFF - 110983
| F (mm) | 30.0 | |
| Fixation | M24 | |
| H (mm) | 6.3 | |
| Ø | 278 | |
| DN | 200.0 | |
| E (mm) | 80.0 | |
| D (mm) | 26.0 | |
| A (mm) | 360 | |
| B (mm) | 310.0 | |
| C (mm) | 219.1 | |
| G (mm) | 278 | |
| Nombre | 12 | |
| Norme | EN1092_1 | |
| Type | BW11/B |
