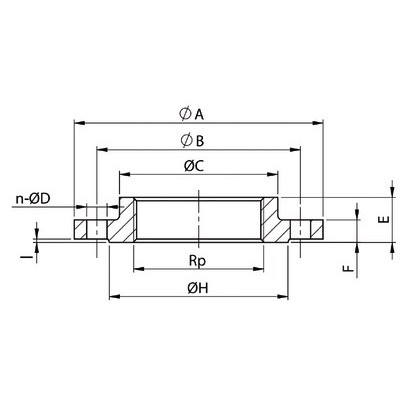

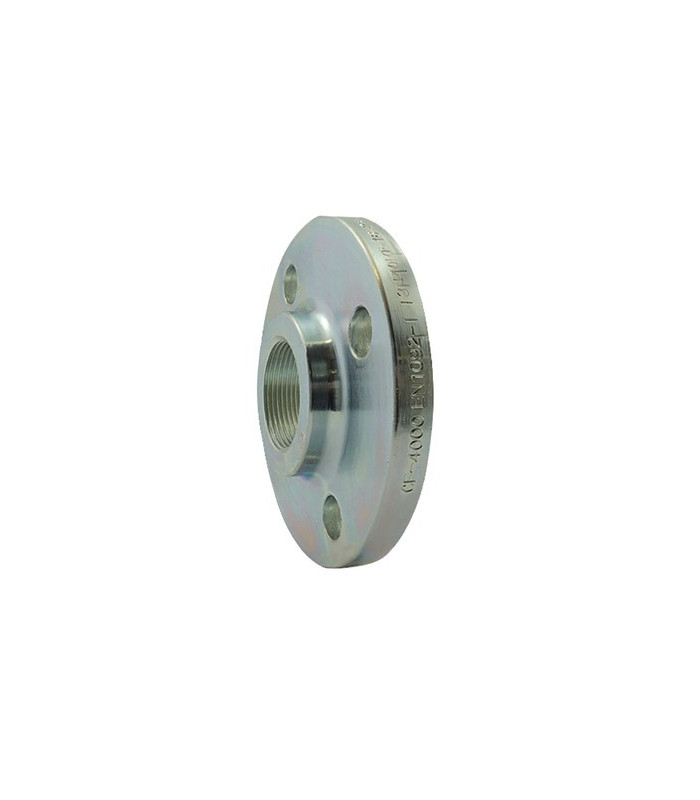

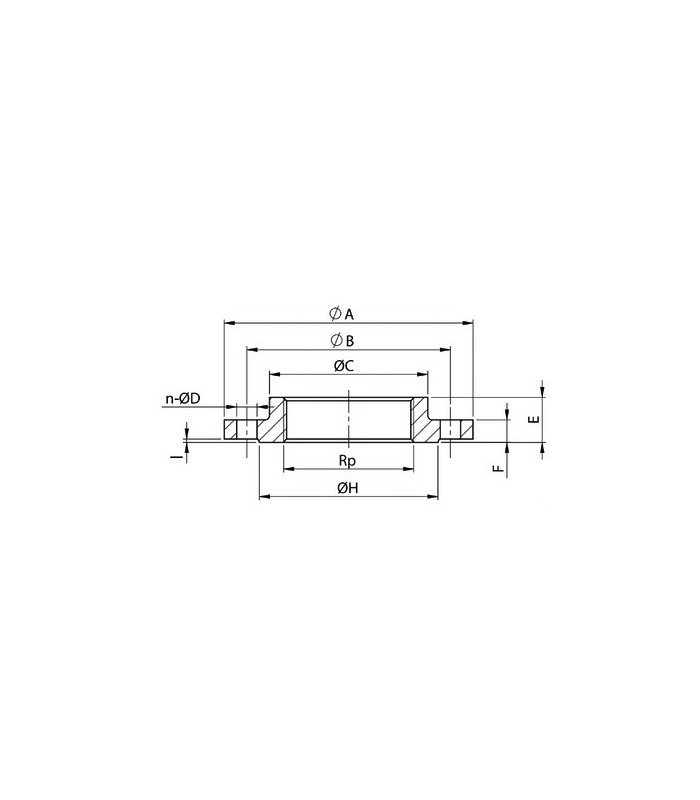

Tapped steel flange F2"- DIFF - 110989
| F (mm) | 18.0 | |
| Fixation | M16 | |
| H (mm) | 2.0 | |
| Ø | F2" | |
| DN | 50.0 | |
| E (mm) | 28.0 | |
| D (mm) | 18.0 | |
| A (mm) | 165.0 | |
| Application | PN : 10-16 | |
| B (mm) | 125.0 | |
| C (mm) | 84.0 | |
| Nombre | 4 | |
| Norme | EN1092_1 | |
| Type | 13B | |
| Hauteur emballage (m) | 0.02 | |
| Largeur emballage (m) | 0.165 | |
| Longueur emballage (m) | 0.165 | |
| Poids emballage (kg) | 2.37 |
110989
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- F (mm)
- 18.0
- Fixation
- M16
- H (mm)
- 2.0
- Ø
- F2"
- DN
- 50.0
- E (mm)
- 28.0
- D (mm)
- 18.0
- A (mm)
- 165.0
- Application
- PN : 10-16
- B (mm)
- 125.0
- C (mm)
- 84.0
- Nombre
- 4
- Norme
- EN1092_1
- Type
- 13B
- Hauteur emballage (m)
- 0.02
- Largeur emballage (m)
- 0.165
- Longueur emballage (m)
- 0.165
- Poids emballage (kg)
- 2.37
