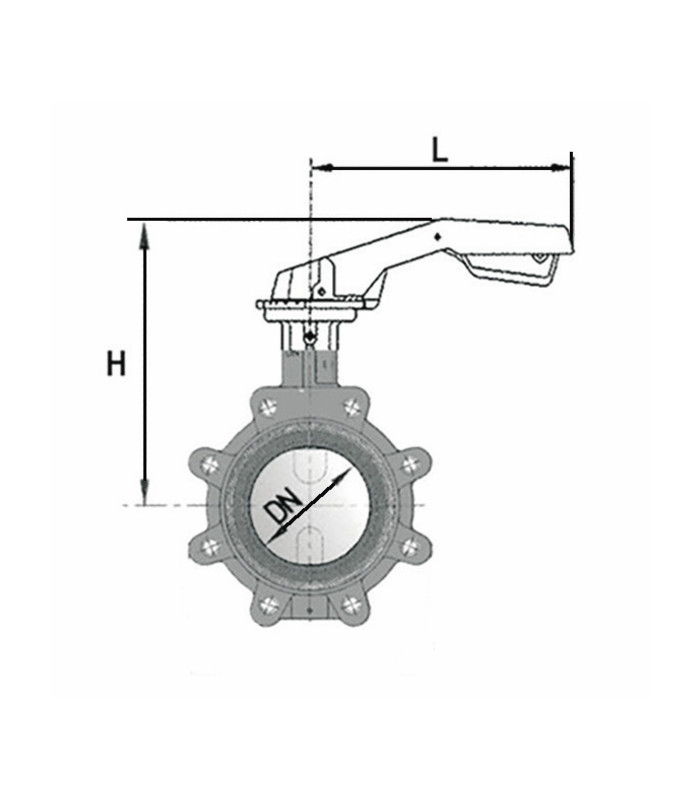

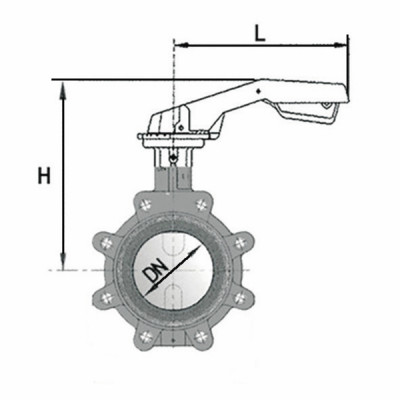

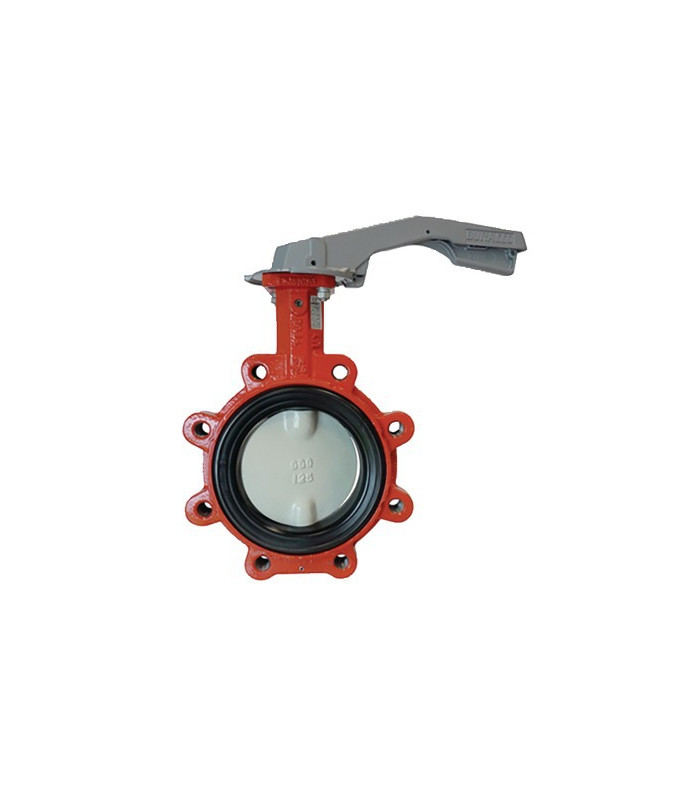

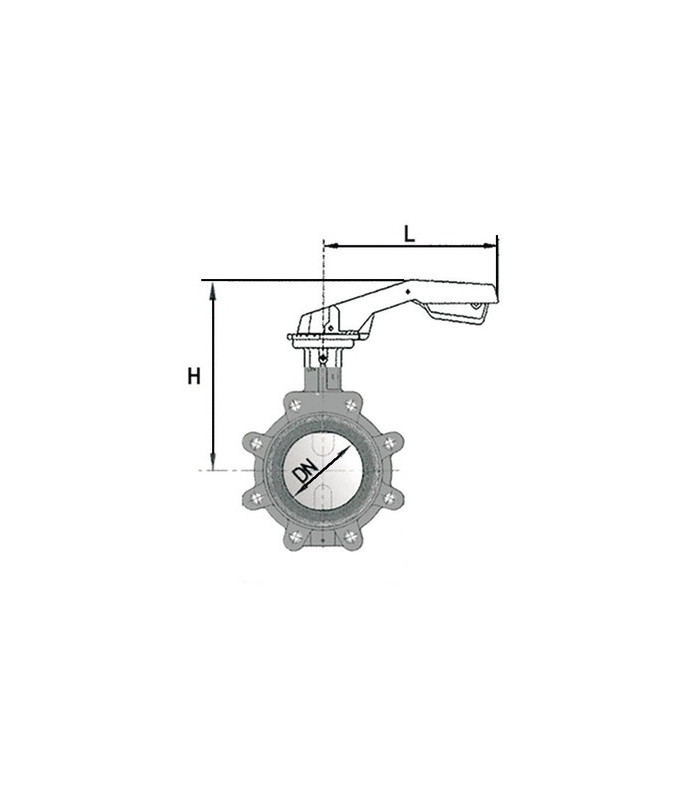

Butterfly valve with cast iron tapped disk DN32 - BURACCO : CL623T032HCCL

CLIMA-LINE butterfly valves are specially designed for HVAC applications. Benefiting from 130 years of development and experience, they guarantee reliability, sealing, long life and. energy savings, 37% average increase in Kv compared with a valve with a single-piece through shaft.

Temperature range: -20°C to 110°C
Working pressure from DN32 to DN200: 16b
CE certification, design according to standard EN 593, sealing in accordance with standard EN 12266-1 -Rate A
SG cast iron butterfly EN JS1030 plus epoxy
EPDM seal
Padlockable notched aluminium lever with ergonomic design
Plate standardised in accordance with EN ISO 5211
Epoxy-coated body for excellent corrosion protection
Non-ejectable shaft for optimal safety
High neck for thermal insulation
Recessed anti-seize neck
Sleeve anchored in the body and floating mounting of the butterfly ensuring a low and constant torque and a lasting seal
Moulding and spherical machining of the sleeve/butterfly contact for a perfect seal
Sleeve with bosses at shaft passages for a reinforced seal towards the exterior
Secondary O-rings for additional security
Manoeuvre possible by manual reduction gear
