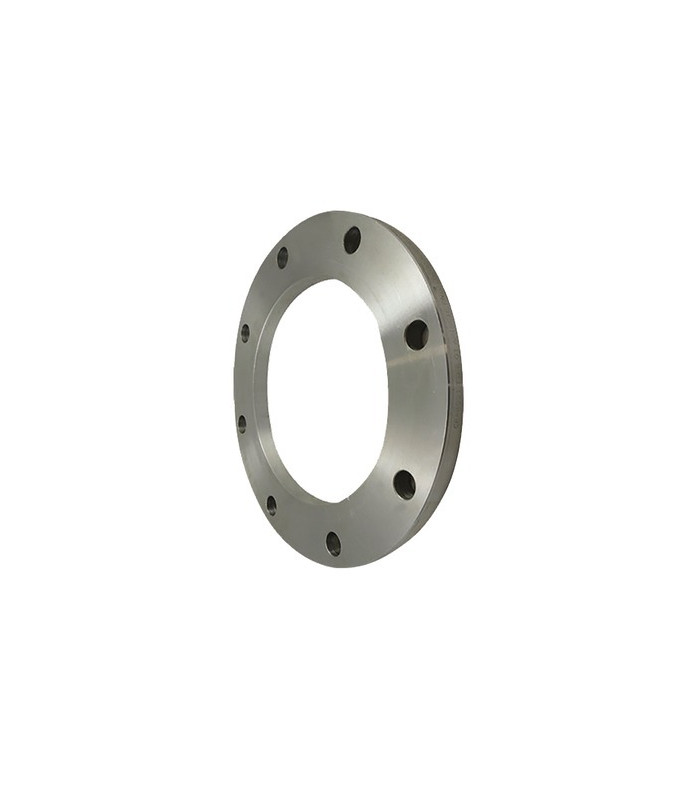

Flat steel flange to be welded DN125- DIFF - 111553

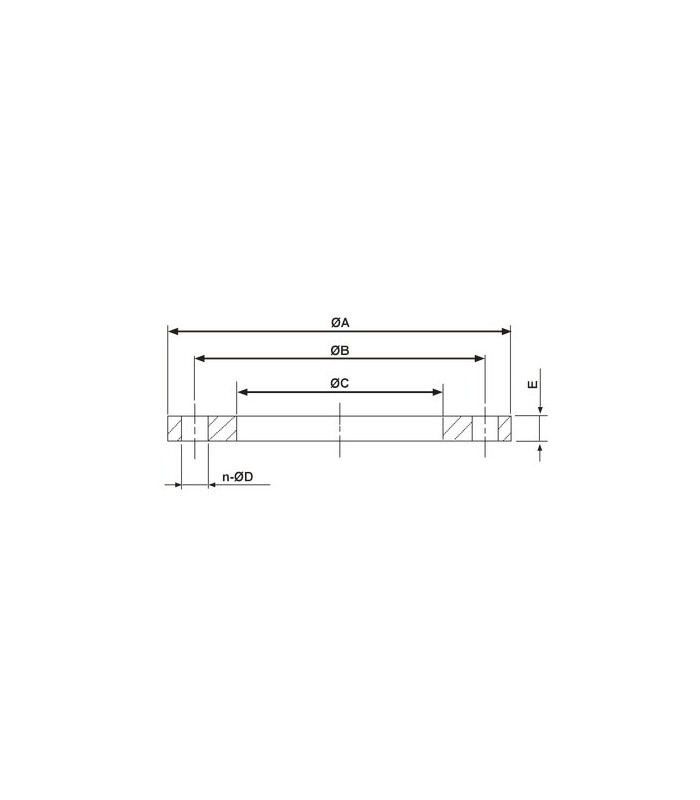

| Mounting | M20 | |
| DN | 125.0 | |
| E (mm) | 22.0 | |
| D (mm) | 22.0 | |
| A (mm) | 250 | |
| Application | PN : 10-16 | |
| B (mm) | 210.0 | |
| C (mm) | 141.5 | |
| Number | 8 | |
| Norme | EN1092_1 | |
| Type | 01A | |
| Package Height (m) | 0.02 | |
| Package Width (m) | 0.25 | |
| Package Length (m) | 0.25 | |
| Package Weight (kg) | 5.45 |
