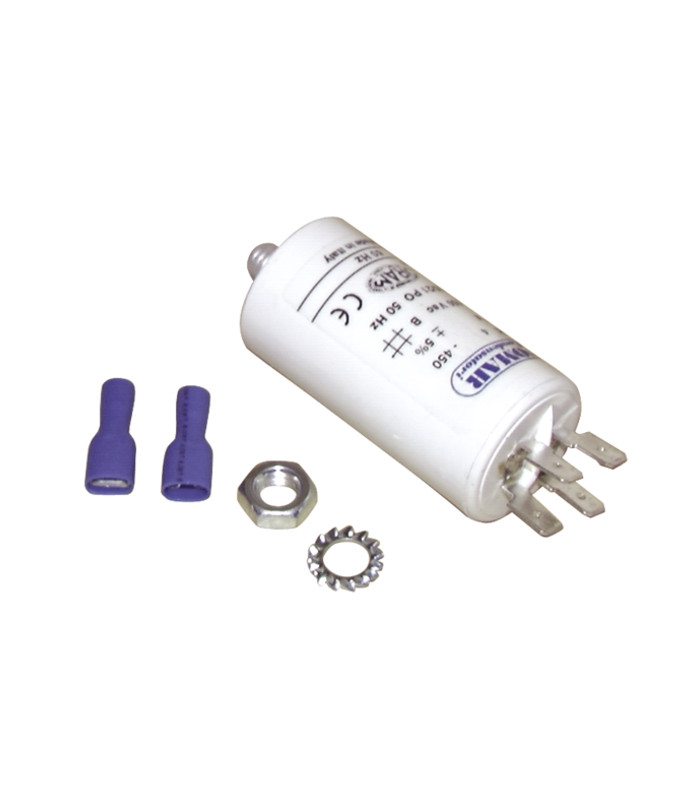

Permanent condensator 5 µf ø30 x lg60 x overall 84 - DIFF for De Dietrich Chappée : S58209851
Supplied with kit including: - PVC pipe - 2 faston terminals to be crimped 6.5 - operating voltage 400/500 volts alternative - 1 nut for fixing
Brand:
€4.00
(tax excl.)
Reference:
Download PDF
701547
Add to wishlist
Permanently under power, they supply the motor with an auxiliary phase. The mentionned voltage on the condensator body is different from themains supply. The replacing of a condensator with higher voltage is possible, not the contrary. If the replacement condensator displays a capacity in micro farad (µf) +/- 20%, the motor starts but provides insuffisant torque and speed, whcih is detrimental to life time. Supplied with kit including:- PVC pipe- 2 faston terminals to be crimped 6.5- operating voltage 400/500 volts alternative- 1 nut for fixing
