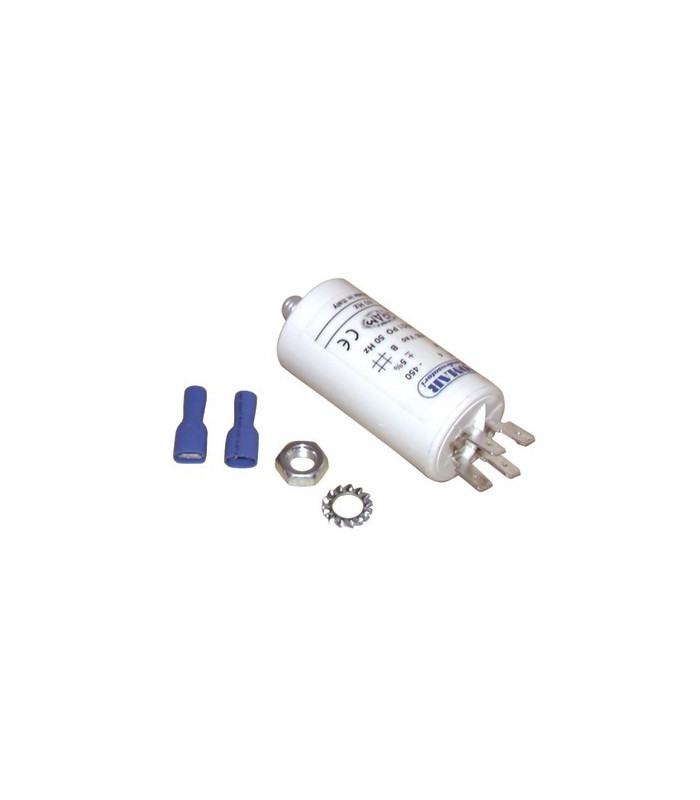

Permanent condensator 2 µf Ø30 xlg 59 x overall 84- DIFF - 701543
Permanently under tension , they supply the motor with an auxiliary phase. Voltage mentionnen on the condensator body is different from the main voltage. Replacement by a condensator with a higher voltage is possible, not the contrary. If the condensator displays a capacity in micro farad (µF) with more or less 20%, the motor can start but provides insufficient torque and speed, which can affect the lifetime. Supplied with kit including: - PVC pipe - Main voltage 400/500 volts alternating - 2 faston terminals to be crimped 6.5 - 1 nut for fixing
Brand:
€3.44
(tax excl.)
Reference:
Download PDF
701543
Add to wishlist
| Length (mm) | 84.00 | |
| Ø | 30x59 | |
| Package Height (m) | 0.035 | |
| Package Width (m) | 0.12 | |
| Package Length (m) | 0.185 | |
| Package Weight (kg) | 0.059 |
