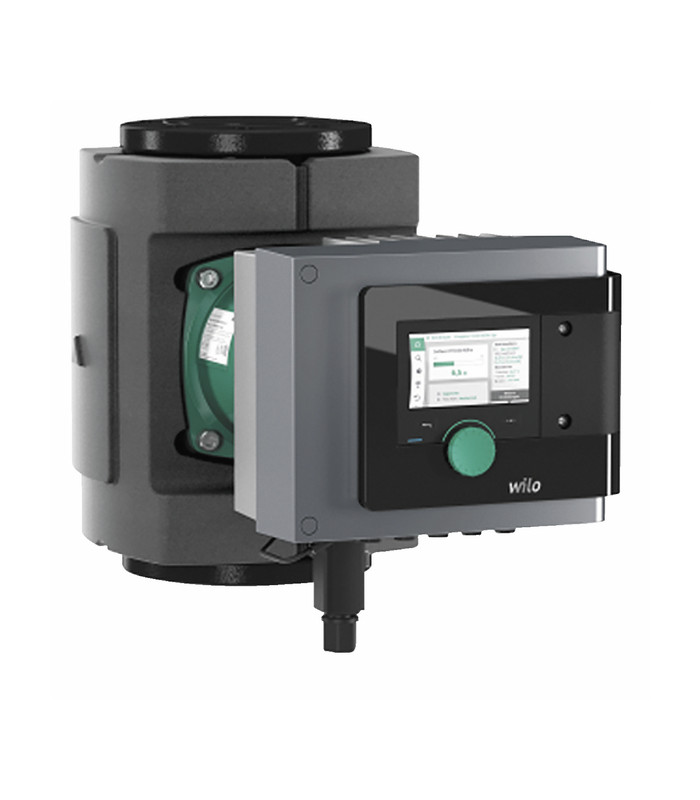

Circulator pump STRATOS MAXO 65/0.5-12 - WILO : 2164594
YOUR ADVANTAGES: Intuitive control with adjustment determined by the application using the Setup Guide, combined with the a new screen and control button with green button technology. Maximum energy efficiency due to the interaction of optimised and innovative energy-saving functions (e.g. No-Flow Stop). Optimal system efficiency due to new intelligent and innovative regulation functions, such as Dynamic Adapt plus, Multi-Flow Adaptation, T-const. and ?T-const. The latest communication interfaces (e.g. Bluetooth) for connection to mobile terminals and direct networking of pumps using Wilo Net for multi-pump control. Maximum electrical installation comfort provided by a large, clear terminal box and the optimised Wilo-connector. Tomorrow's technology for today's systems. Wilo-Stratos MAXO also redefines standards for air conditioning engineering and drinking water applications in the field of energy efficiency, due to its enhanced and innovative energy saving functions. In addition, its design for intuitive operation makes its control as easy as child?s play. Insulating shell supplied.
DESIGN Smart circulator pump with wet rotor with threaded or flanged connector, EC motor with integrated electronic adaptation of hydraulic performances.
USE: Hot water heating all systems, air conditioning circuits, closed cooling circuits, industrial circulation installations.
FUNCTION Application fields The pump enables the installation to operate with the highest efficiency by precisely adjusting the type of regulation for each application of the installation (e.g. radiator, heating floor, air conditioning through the ceiling). Radiator heating Floor heating Ceiling heating Unit heater Hydraulic inverter Heat exchanger Cooling Air conditioning through the ceiling Air conditioning through the floor Air conditioning units by air Hydraulic inverter Heat exchanger Combined heating and air conditioning Automatic switching The following regulation types are available depending on the chosen application: Constant rotation speed (speed regulation mode) ?p-c for constant differential pressure ?p-v for variable differential pressure Dynamic Adapter plus function for continuous (dynamic) adaptation of the flow rate depending on needs T-const. for constant temperature regulation ?T for differential temperature regulation Constant Q for constant flow regulation Multi-Flow adaptation: Determination of the total flow of the supply pump to supply secondary pumps in heating circuit distributors, depending on their needs User-customized PID-controller Data exchange Bluetooth interface for wireless data exchange and for remote control of the pump using a smartphone or tablet.
Equipment Integrated temperature sensor Thermal insulation as standard for heating applications Quick connection with Wilo-connector optimised for electrical power supply Allowable temperature range from -10°C to +110°C Gasket supplied for threaded connectors
