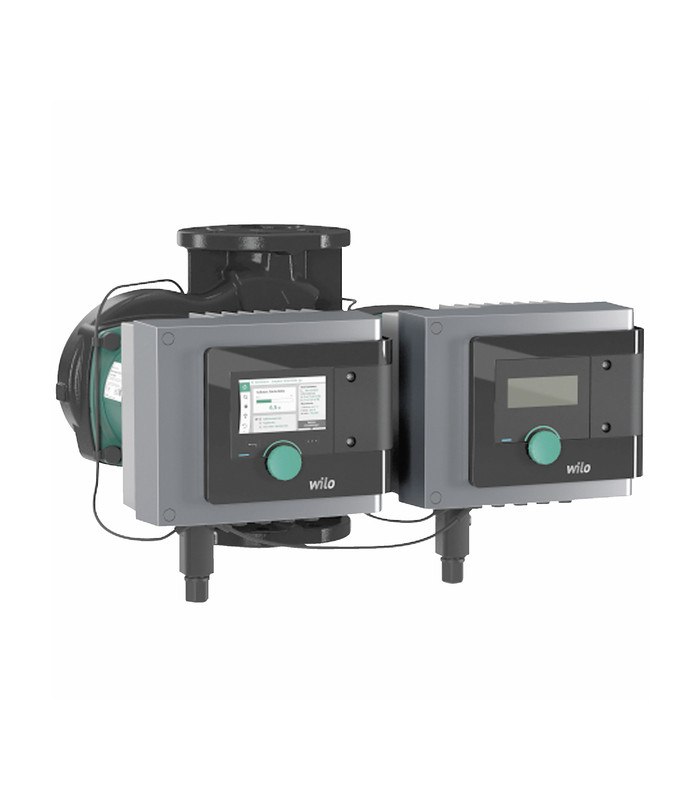

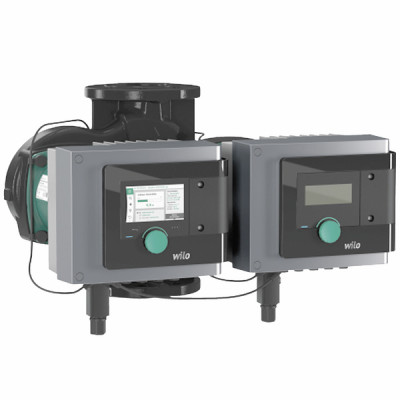

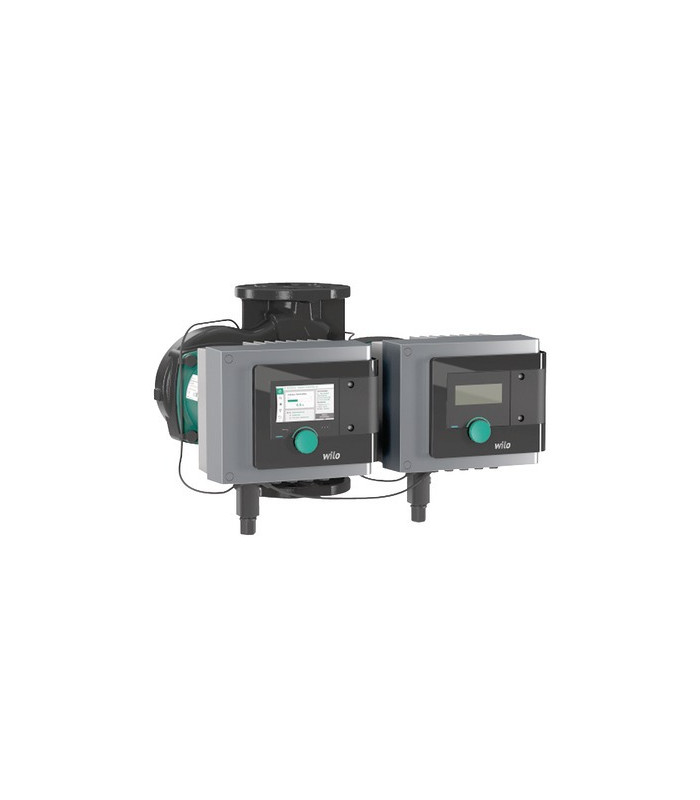

Circulator pump STRATOS MAXO-D 30/0.5-6 - WILO : 2164645

YOUR ADVANTAGES: Intuitive control with adjustment determined by the application using the Setup Guide, combined with the new screen and control button with green button technology. Maximum energy efficiency due to the interaction of optimised and innovative energy-saving functions (e.g. No-Flow Stop). Optimal system efficiency due to new intelligent and innovative regulation functions, such as Dynamic Adapt plus, Multi-Flow Adaptation, T-const. and ?T-const. The latest communication interfaces (e.g. Bluetooth) for connection to mobile terminals and direct networking of pumps using Wilo Net for multi-pump control. Maximum electrical installation comfort provided by a large, clear terminal box and the optimised Wilo-connector. Already in the world of tomorrow More efficient, better connectivity and comfort than ever before: the Wilo-Stratos MAXO and the Wilo-Stratos MAXO-D provide you with the pump technology of the future. The world's first smart circulator pump makes your life easier today with tomorrow's innovations.
DESIGN Smart dual circulator pump with wet rotor with threaded or flanged connector, EC motor with integrated electronic adaptation of hydraulic performances.
USE: Hot water heating all systems, air conditioning circuits, closed cooling circuits, industrial circulation installations.
FUNCTION Application fields The pump enables the installation to operate with the highest efficiency by precisely adjusting the type of regulation for each application of the installation (e.g. radiator, heating floor, air conditioning through the ceiling). Radiator heating Floor heating Ceiling heating Unit heater Hydraulic inverter Heat exchanger Cooling Air conditioning through the ceiling Air conditioning through the floor Air conditioning units by air Hydraulic inverter Heat exchanger Combined heating and air conditioning Automatic switching The following regulation types are available depending on the chosen application: Constant rotation speed (speed regulation mode) ?p-c for constant differential pressure ?p-v for variable differential pressure Dynamic Adapter plus function for continuous (dynamic) adaptation of the flow rate depending on needs T-const. for constant temperature regulation ?T for differential temperature regulation Constant Q for constant flow regulation Multi-Flow adaptation: Determination of the total flow rate of the supply pump to supply secondary pumps in heating circuit distribution pipes depending on their needs. PID controller personalised by the user Dual-pump control (double pump or 2 single pumps) Principal/reserve operating mode (with automatic changeover in case of fault/changeover of pumps as a function of time) Parallel operation (backup start and stop with optimised efficiency)
EQUIPMENT Bluetooth interface High resolution graphic display with green button and 2 keys Integrated temperature sensor Fast electrical connection with Wilo plug optimised for the electrical power supply. Allowable temperature range from -10°C to +110°C Gasket supplied for threaded connections
