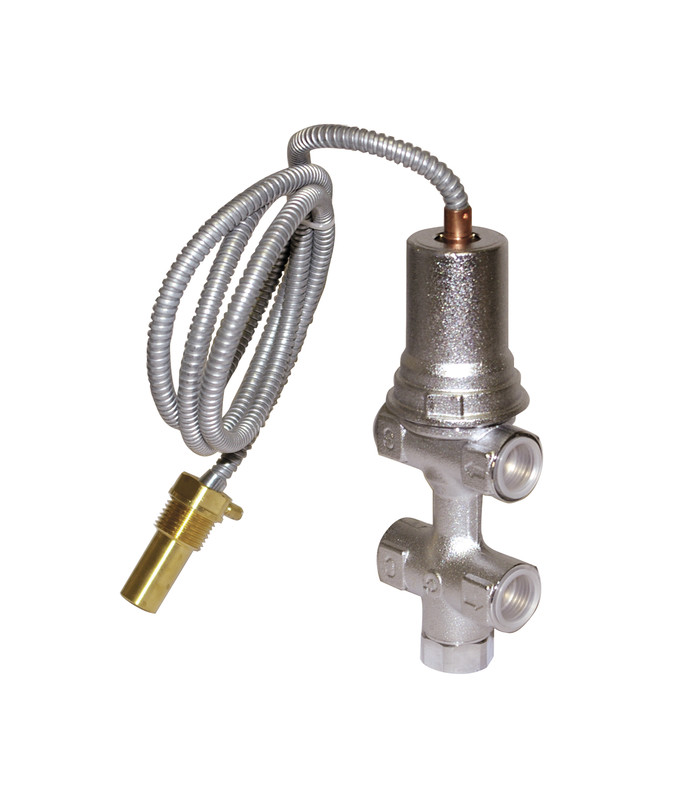

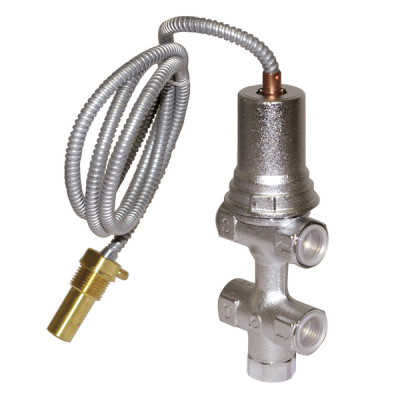

FUNCTION : Safety valve with capillary are used for protection of solid fuel heaters. In case of accidental over heat, heater cooling ensured by the openning of valve which drains hot water. Safety valve is obligatory. Adjusting of heater temperature no ensured by the valve alone. CONSTRUCTION : Chrome platyed brass body. Stainless steel spring. Ethylene-propylene gasket. FUNCTIONALS FEATURES: Release temperature : 100°C (+0°C -5°C) Max working temperature : 110°C Ambient temperature: 6°C minimum Max pressure (inlet EF and heating) : 6 bars Discharge flow under drop flow 1 bar : 1800 l/h Capillary length: 1300 mm Connection FF1/2" Probe connection M1/2" Dimensions : Center distance: 60mm Height 162mm Width 51mm.
FUNCTION :Safety valve with capillary are used for protection of solid fuel heaters.In case of accidental over heat, heater cooling ensured by the openning of valve which drains hot water.Safety valve is obligatory.Adjusting of heater temperature no ensured by the valve alone.CONSTRUCTION :Chrome platyed brass body.Stainless steel spring.Ethylene-propylene gasket.FUNCTIONALS FEATURES: The ST544 vale is used on heater without hot water tank or exchanger.The valve is opennig when the limit temperature is reached.It drains hot water, replaced by a same quantity of cold water.Release temperature : 100°C (+0°C -5°C)Max working temperature : 110°CAmbient temperature: 6°C minimumMax pressure (inlet EF and heating) : 6 barsDischarge flow under drop flow 1 bar : 1800 l/hCapillary length: 1300 mmConnection FF1/2"Probe connection M1/2"Dimensions :Center distance: 60mmHeight 162mmWidth 51mm.
