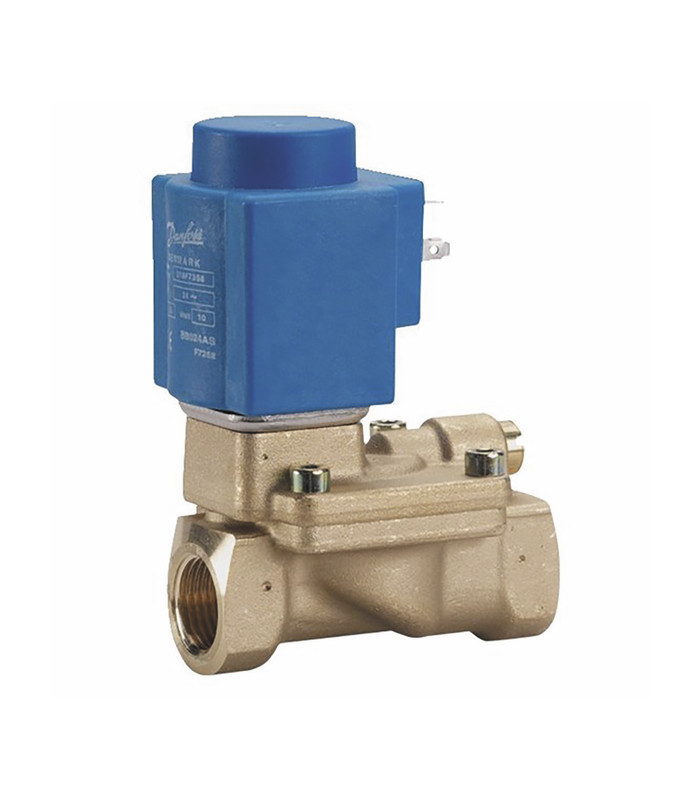

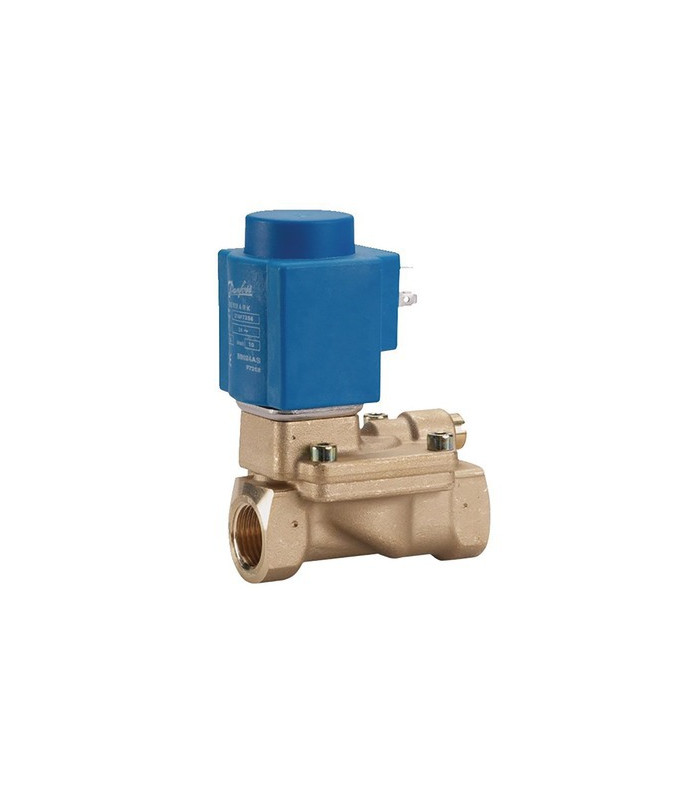

Solenoid valve type danfoss evsi 25 ff1"- DANFOSS - 32U7125

Solenoid valve type danfoss evsi 25 ff1"- DANFOSS - 32U7125

Name: Solenoid valve type danfoss evsi 25 ff1"- DANFOSS - 32U7125
Brand: DANFOSS
SKU: 102622
Price: 295.62 EUR
Availability: OutOfStock

For WATER - SAUMURE - VAPEUR WITH NON ZERO DIFFERENTIAL PRESSURE (Normally closed) Servo ordered for high flow coil 9W except 12V DC 15W Fluid temperature -30 to +100°C Supplied with coil 220V AC and connector CAUTION : respect the minimal pressure

Brand:

€295.62 (tax excl.)

Reference:

102622

Download PDF

Add to wishlist

Description
Caracteristique

Description

Caractéristiques

H (mm)	129
Length (mm)	109
Logo Marque	DANFOSS
Pressure range (mbar)	0.3 / 16
Ø	F1''
Kv (m³/h)	11
Type	EV220 B25
Temperature (°C)	11
Package Height (m)	0.122
Package Width (m)	0.166
Package Length (m)	0.17
Package Weight (kg)	1.679

Product Details

Reference 102622

Data sheet

FAB_COM_EQ: ORIGINE FABRICANT

H (mm): 129

Length (mm): 109

Logo Marque: DANFOSS

Pressure range (mbar): 0.3 / 16

Ø: F1''

Kv (m³/h): 11

Type: EV220 B25

Temperature (°C): 11

Package Height (m): 0.122

Package Width (m): 0.166

Package Length (m): 0.17

Package Weight (kg): 1.679
