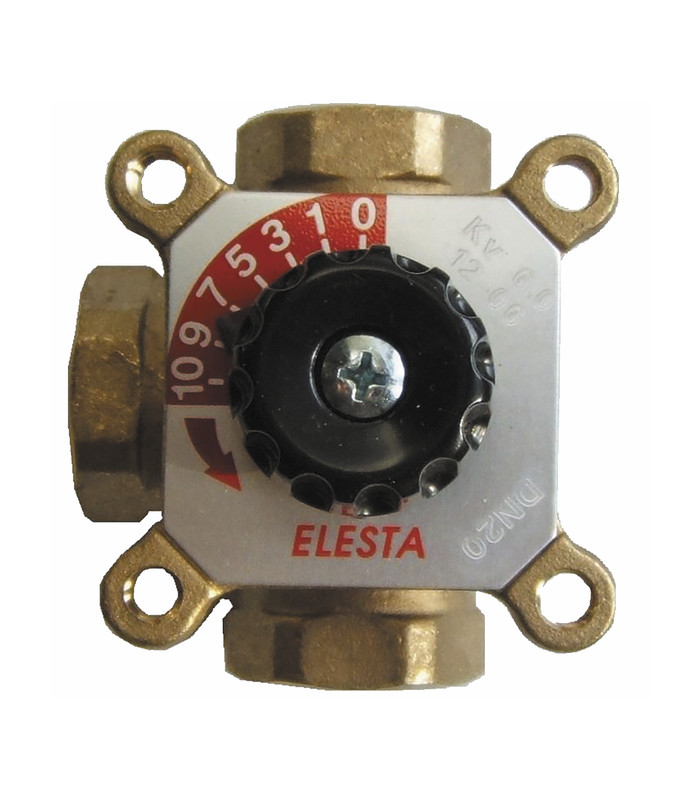

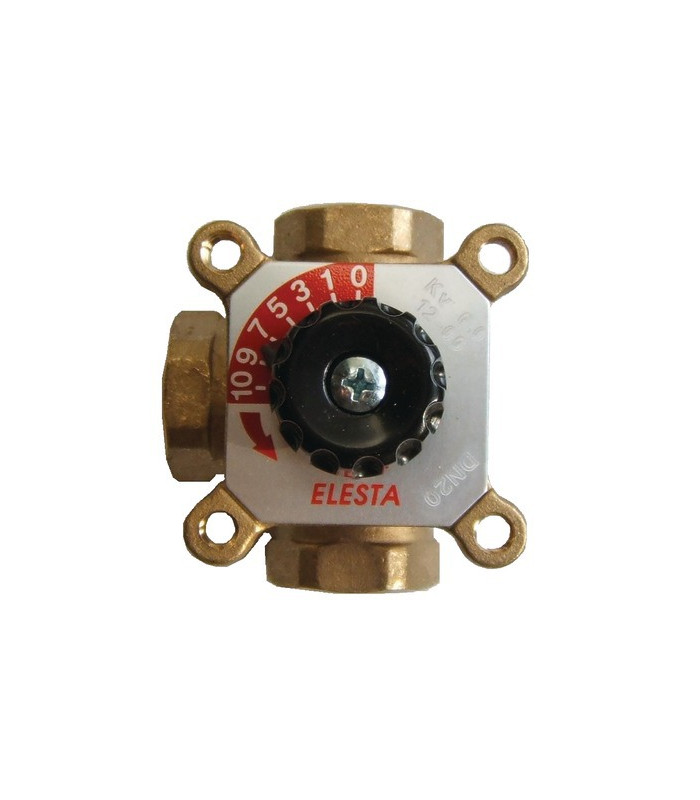

Elesta mixing valve 3 way type h3mg20 ff3/4"- E.R.E REGULATION - H3MG20-4

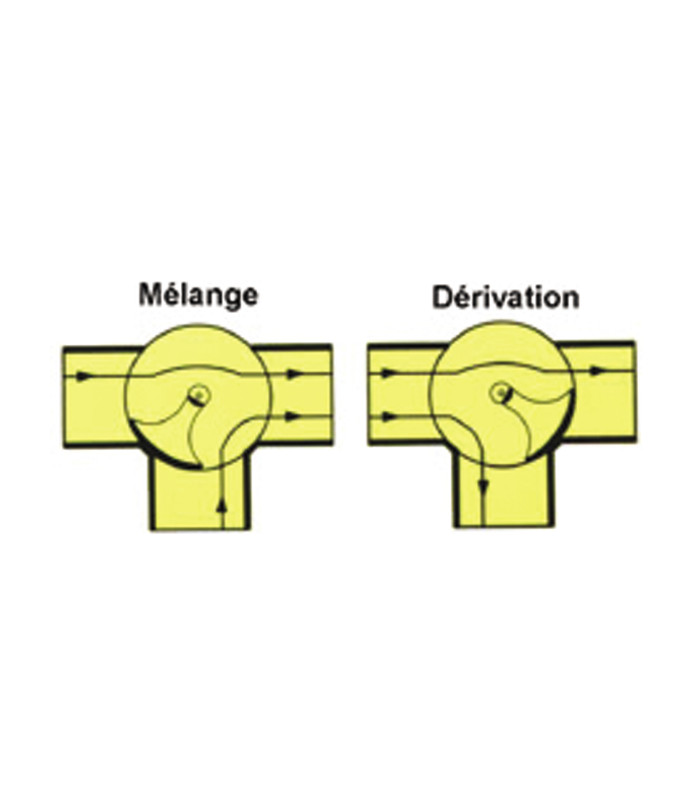

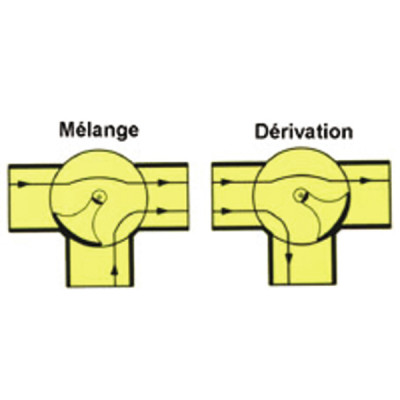

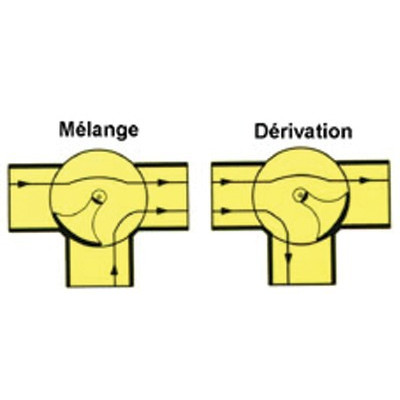

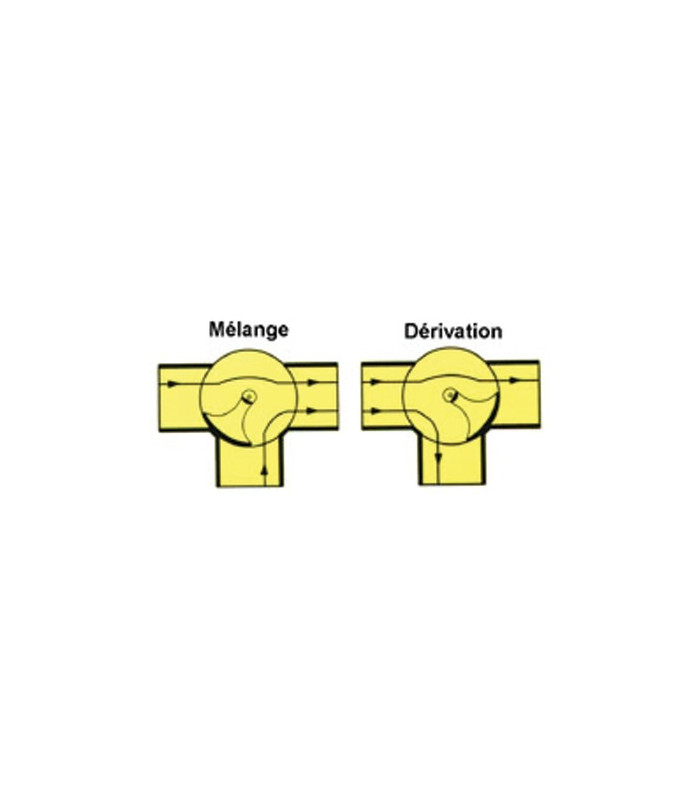

The mixing valve provides optimal boiler functioning, and the requested room temperature. The mixing valve can be equipped with actuator. TECHNICAL FEATURES Max static pressure : 10 bar (1 MPA) Max temperature : 110°C Mini temperature : -30°C DifferentIal pressure drop : 200 kPa CONSTRUCTION Valve body : bronze Axis : brass Washer : PPO Outside plate : Zinc O-ring : EPDM 3 ways valve, brass type MG controled by motors range 60 25 kW Radiator circuits 10 kW heating floors Ø3/4 " KVS 4 Center distance 80mm x Height 105mm
Brand:
€38.66
(tax excl.)
Reference:
Download PDF
109196
Add to wishlist
| H (mm) | 40.0 | |
| Length (mm) | 80.00 | |
| Logo Marque | ELESTA | |
| Power (details) | 10kW / 25kW | |
| Ø | F3/4" | |
| DN | 20.0 | |
| B (mm) | 34.5 | |
| C (mm) | 71.5 | |
| H1 (mm) | 105 | |
| Kv (m³/h) | 4.00 | |
| Number | 1 | |
| PN (bar) | 10 | |
| Package Height (m) | 0.09 | |
| Package Width (m) | 0.095 | |
| Package Length (m) | 0.11 | |
| Package Weight (kg) | 0.784 |
109196
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- H (mm)
- 40.0
- Length (mm)
- 80.00
- Logo Marque
- ELESTA
- Power (details)
- 10kW / 25kW
- Ø
- F3/4"
- DN
- 20.0
- B (mm)
- 34.5
- C (mm)
- 71.5
- H1 (mm)
- 105
- Kv (m³/h)
- 4.00
- Number
- 1
- PN (bar)
- 10
- Package Height (m)
- 0.09
- Package Width (m)
- 0.095
- Package Length (m)
- 0.11
- Package Weight (kg)
- 0.784
