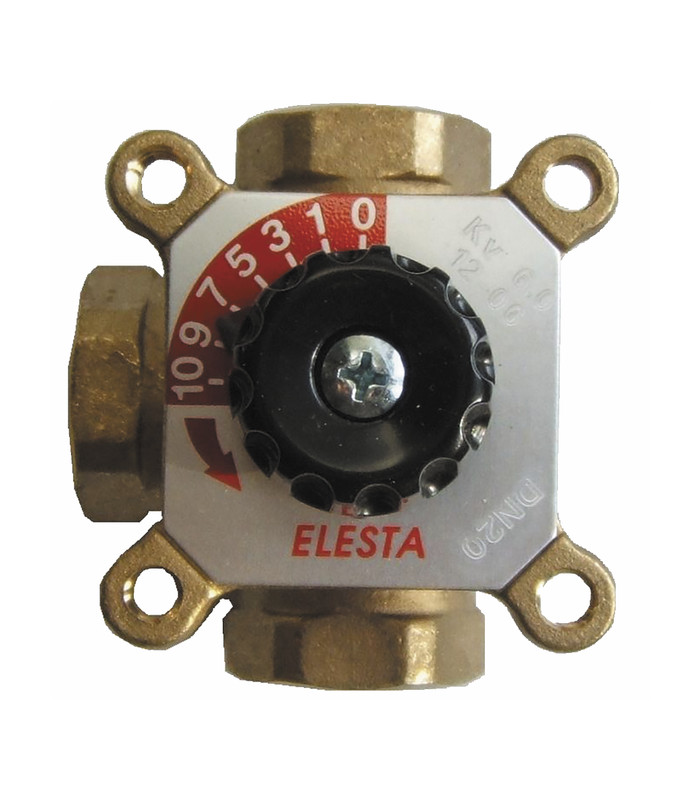

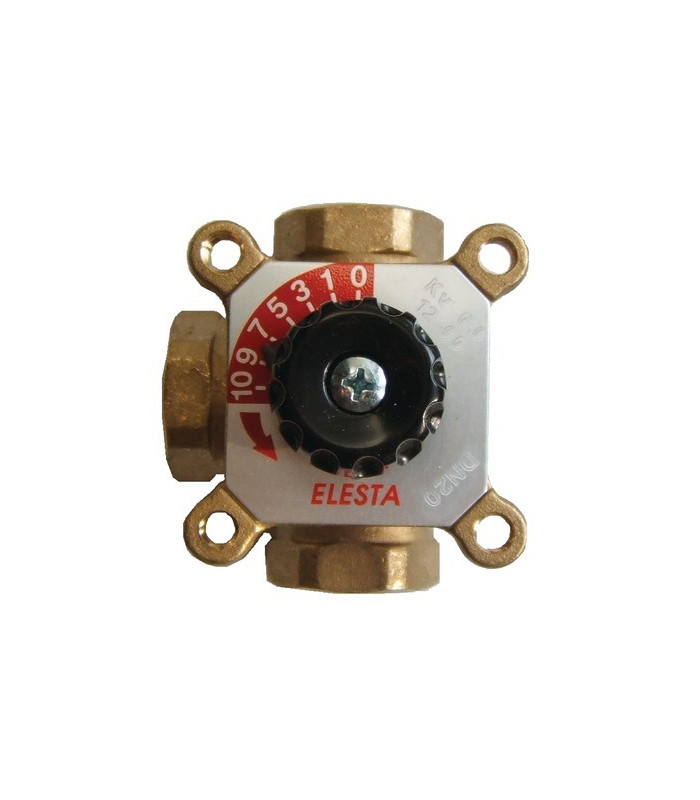

Elesta mixing valve 3 way type h3mg25 ff1"- E.R.E REGULATION - H3MG25-8

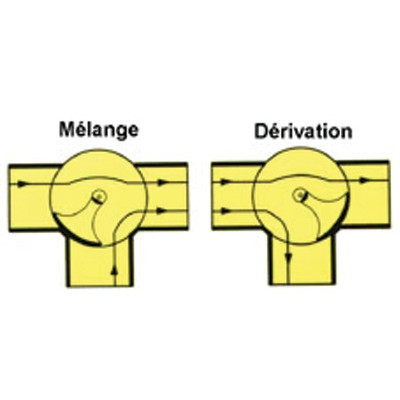

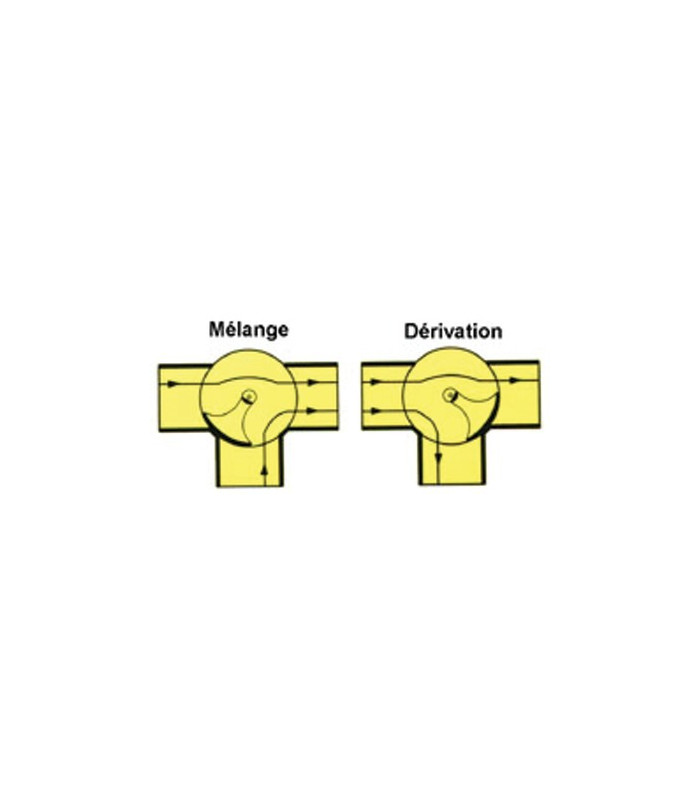

USE The mixing valve provides optimal boiler functioning, and the requested room temperature. The mixing valve can be equipped with actuator. TECHNICAL FEATURES : Max static pressure : 10 bar (1 MPA) Max temperature : 110°C Mini temperature : -30°C DifferentIal pressure drop : 200 kPa CONSTRUCTION Valve body : bronze Axis : brass Washer : PPO Outside plate : Zinc O-ring : EPDM 3 ways valve, brass type M6 controled by motors range 60 50 kW Radiator circuits, 22 kW heating floors, Ø1" KVS 8. Center distance 82mm x Height 105mm
Brand:
€41.84
(tax excl.)
Reference:
Download PDF
109203
Add to wishlist
| H (mm) | 41.0 | |
| Length (mm) | 82.00 | |
| Logo Marque | ELESTA | |
| Power (details) | 22kW / 50kW | |
| Ø | F1" | |
| DN | 25.0 | |
| B (mm) | 34.5 | |
| C (mm) | 71.5 | |
| H1 (mm) | 105 | |
| Kv (m³/h) | 8.00 | |
| PN (bar) | 10 | |
| Package Height (m) | 0.1 | |
| Package Width (m) | 0.115 | |
| Package Length (m) | 0.14 | |
| Package Weight (kg) | 0.89 |
109203
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- H (mm)
- 41.0
- Length (mm)
- 82.00
- Logo Marque
- ELESTA
- Power (details)
- 22kW / 50kW
- Ø
- F1"
- DN
- 25.0
- B (mm)
- 34.5
- C (mm)
- 71.5
- H1 (mm)
- 105
- Kv (m³/h)
- 8.00
- PN (bar)
- 10
- Package Height (m)
- 0.1
- Package Width (m)
- 0.115
- Package Length (m)
- 0.14
- Package Weight (kg)
- 0.89
