FUNCTION :

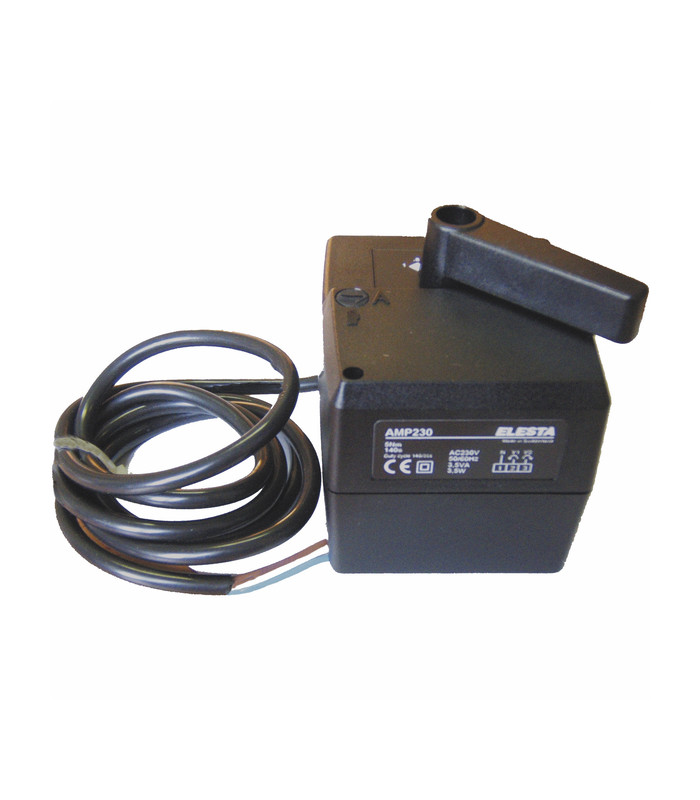

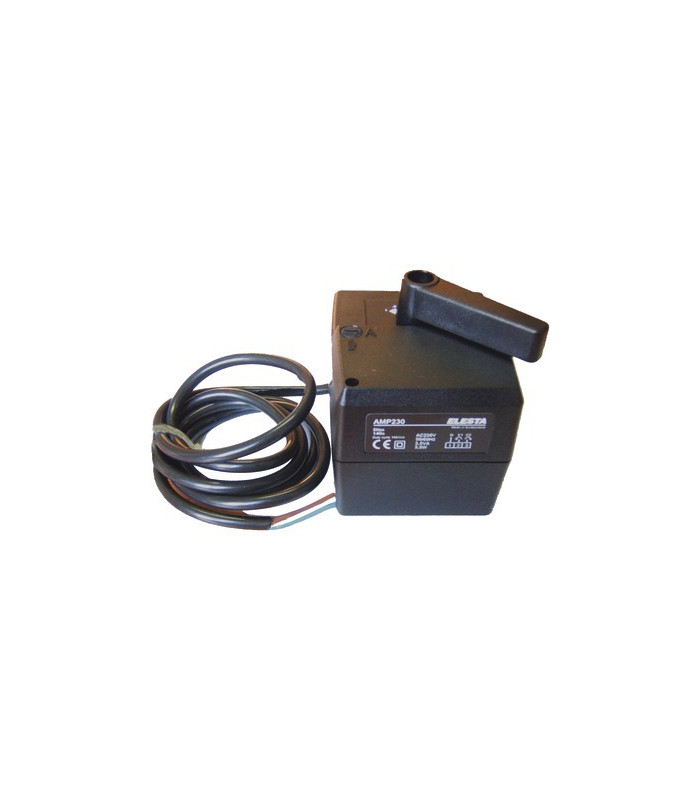

The servomotor is commonly inserted in heating installations for the automatic command of 3 and 4 way mixing valves.
There are 2 operating ways, with robust construction, silent functioning. Is installed easily, there is a important couple able to operate the valve up to DN 120.
With manual control
The servomotor reacts within seconds to the needs of the installation, can be controlled by a room thermostat or other, obtaining in this way real savings.
By associating it one of the couplings, it is possible to mount it on many valves.
Example : Black couplings for brass valves and 3 way cast iron valves
White couplings for 4 way cast iron valve
PARTICULARITIES :
Power supply 230VAC
Supply cable 1500mm (3 strings)
Power absorbed 3,5W.
Protection IP 40.
Angle of rotation 90° in 140 seconds
Power of rotation : 5Nm
Ways of rotation bi-directional.
Delivered with handle and 2 couplings for
valve NRE
Dimensions :
Length 93mm
Width 80mm
Height 91mm
Safety Information :
To protect yourself against electrical hazards, be sure to disconnect the load from the power supply before working on it. If in doubt, don't risk a faulty installation: ask a qualified electrician for advice.
