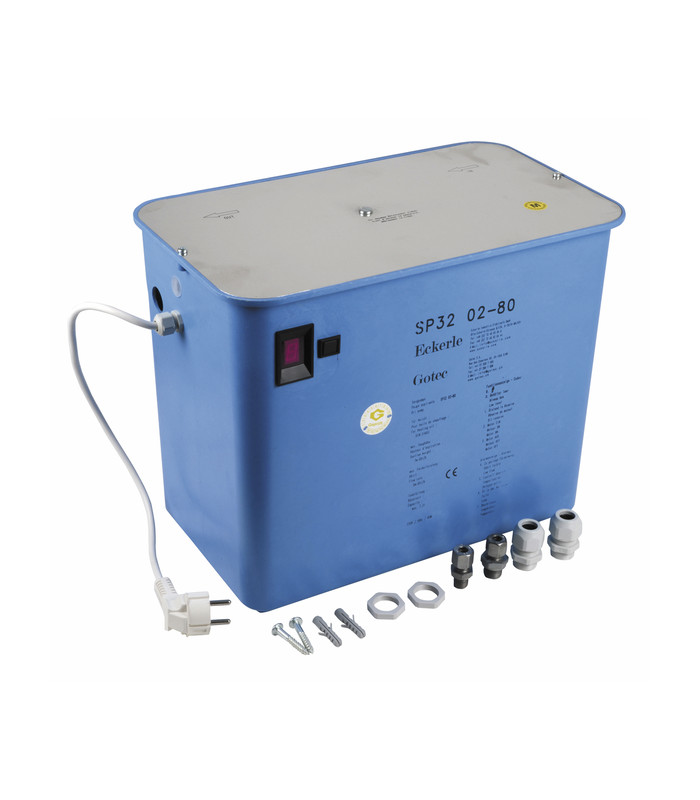

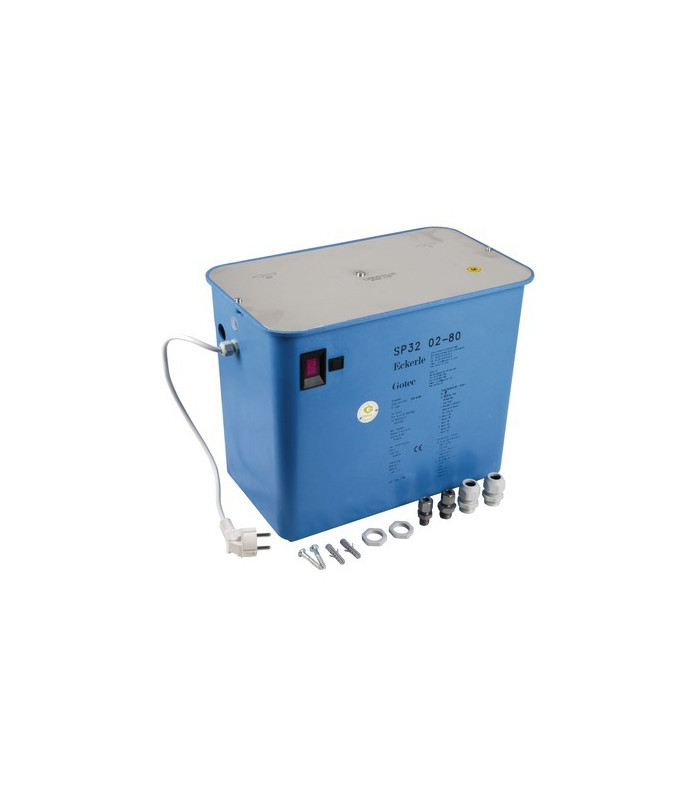

Pump suction eckerle type sp 32-02-80 m- GOTEC - 114048

USE :Suck fuel tank and supply a burner.Suction pump with anti-siphoning mecanicalThese pump with high capacity are adjusted to new standard security.It has same function thatSP32-01 and supplied with two motors, which can double the Flow. Easy assembly, pump is supplied with filter, electrical cable with hydraulic fittings for copper pipe diameter 8x10This pump type is used for transfer of domestic fuel for burners with their circuit or automatic fumaces . The pump sucks fuel tank and fills it own tank.Then the fuel is sucked by the pump of burner. The tank ensures an intermittentoperation of the pump.There is an increase of lifetime and a noise level decrease.The tank capacity is of 7,3 litres. Capacity accumulator of 3.8 litres and the storage 3.5 litres.Type perfectly adapted to new security standards. Pipes are not under pressure and in case of suction pipe leak, the pump turns off and doesn't debit fuel.It is equipped in tank with a security float which activates alamr in case of leak in fuel tank or in fittings and in case of overflow.There is an antisiphoning electrical system at the pump outlet.TECNICALS DATA:Dimensions : Height 315mmWidth 380mmDepth 225 mmWeight : 7 KgFlow : 60 L/h with 4 m of suction, and 20 L/h with 7 m of suctionElectricals features : Single-phased 230V 50Hz, 80WAVANTAGES :Storage of 7.3 LDigital view of cycle or code Non-return valve included in the pump and mecanical antisiphonDiscrete working with 100% of security.Tank and overflow security with alarmeMotor protection if workingdry.Stop pump if empty tank.Stop pump if damaged pipe.Stop pump if ambient temperature high.Room air tank to permit fuel degassing.The big tank permits at the pumped fuel totake ambient temperature,as well stabilizes it viscosity is always the same andadjuste the burner flam is easy.
