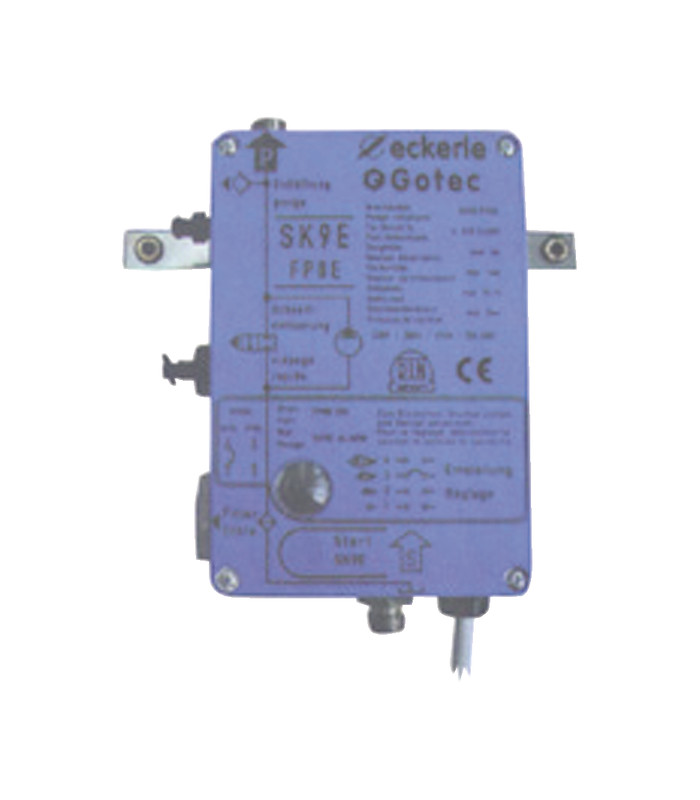

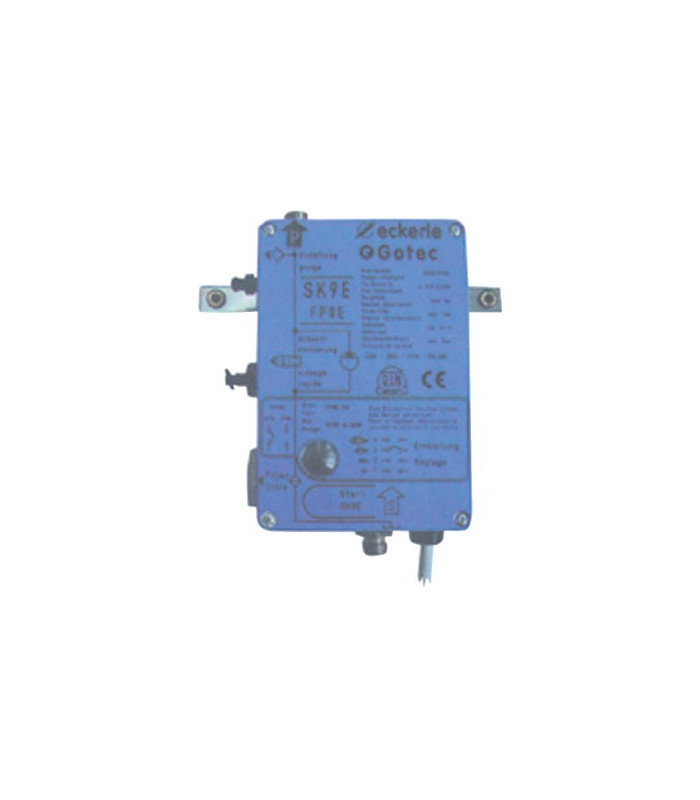

Pump suction eckerle type sk9e /fp8e- GOTEC - 110962

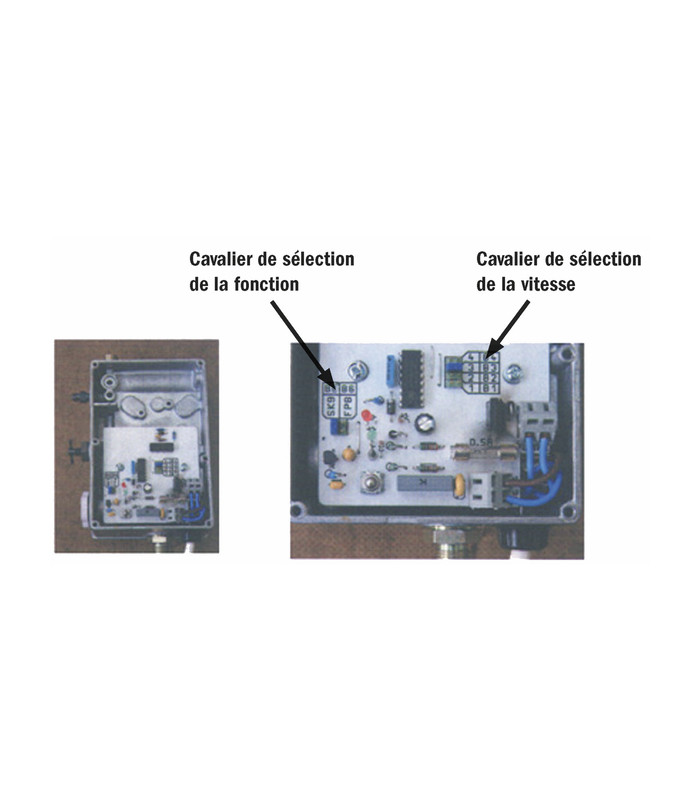

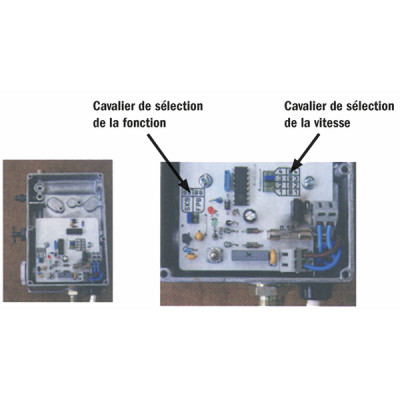

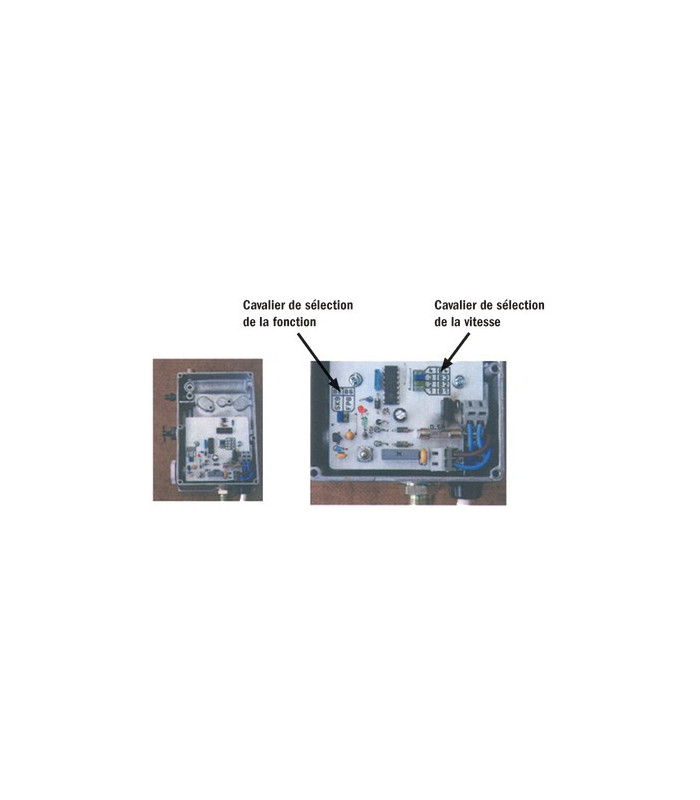

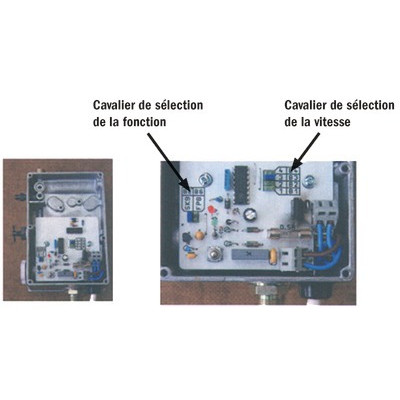

USE :Suck fuel tank and discharge it in fumaces or suck fuel of a tank to supply a burner.Suction-forcing back pump for burner with evaporation (configuration SK9E) or burner with nebulization (configuration FP8E) with 4 adjustable speeds and security in case of power failure in configuration SK9E.Self regulation pressure, security anti-leak with pressure relief valve, drainage tap, quick line drain and filter included in housing pump. Easy installation with fixing, electrical flex and it hydraulic fittingsfor copper pipes dimander 6x8. The new pump SK9E/FP8E replaces types SK8, SK9E, FP6 and FP8E. Possibility of choose between a continuous working to supply fuel fumaces (SK9E) and working in synchronization with the burner (FP8E)Possibility of 4 speeds working according to desired performance. The pump is maximum 3 meters over the tank (never below). It sucks fuel and backs up in fumaces which are over the pump (SK9E) or fuel transfer to the burner(FP8E). In aluminium housing, there are a filter, drainage air tap and a quick pipe drain tap.There is not security in case of pipe break or fuel lack in tank, so you must turned off the pump when it working isn't necessary.SK9E can work permanently. It is recommended strat it only during heating time, to increase it lifetime. TECNICALS DATA:Dimensions : Width 180mmHeight 200mmDepth 98mmWeight : 1.8 KgFlow : from 3 to 10 l/h with 14 m of forcing back vertical and 3 m of suction.Preset pressure at 2 bars Electricals features : Single-phased 230V 50Hz, 25W ADVANTAGES :Optimal adjusting Flow according to the consumption (from 5 to 100 KW)Reduction number typesDecrease wear Very long lifetime if synchronization One-pipe pump, No return at the tankNoise level reduced Non-return valve included in the pump Hermectic anti-leaks enclosure CAUTION : Don't use flexible pipe for the connection.
