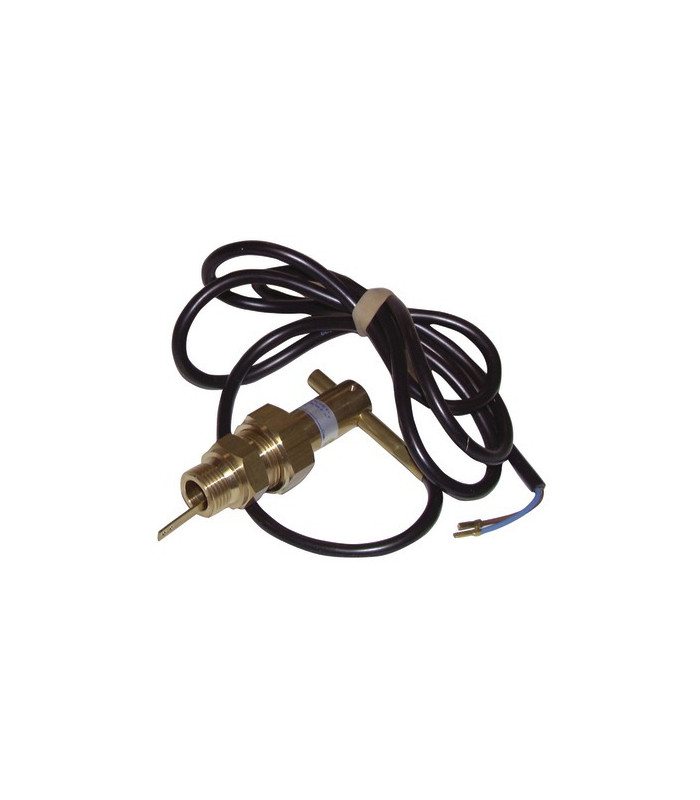

Blade flow controller type vhs07m- SIKA - VHS07M-MS
Blade flow controller type vhs07m- SIKA - VHS07M-MS

Blade flow controller type vhs07m- SIKA - VHS07M-MS

Flow controllers,very reliable, are used to detect the beginning or the end of a flow in horizontal piping with liquids. Activated by a blade, they are used for liquid flow in piping of 2" and more. VH05M controllers,activated by a disk, detect clean liquids in piping of 2" and less. Supplied with connector to weld. For liquid : water, oil, fuel... APPLICATION : Industrial installation Heating installation Boiler COMPOSITION : Brass body Brass blade TECNICALS FEATURES : Reversing contact: 1A - 250VAC Protection : IP 65 Max pressure : 25 bars Max fluid temperature : 110°C Drop pressure : 0,01 bar Hysteresis : 15% Connector F 3/4 Connector M1/2" Dimensions : Length 120mm Width 38mm Height with big blade 191mm Vertical assembly

Brand:
SIKA
€190.46 (tax excl.)
In Stock 14 products
Reference:
704511
  Download PDF
Add to wishlist
Description
Flow controllers,very reliable, are used to detect the beginning or the end of a flow in horizontal piping with liquids.Activated by a blade, they are used for liquid flow in piping of 2" and more.VH05M controllers,activated by a disk, detect clean liquids in piping of 2" and less.Supplied with connector to weld.For liquid : water, oil, fuel...APPLICATION : Industrial installation Heating installation BoilerCOMPOSITION :Brass bodyBrass bladeTECNICALS FEATURES :Reversing contact: 1A - 250VACProtection : IP 65Piping : DN50 to DN200Adjusting DN50 : 4,3 to 5,2m3/hourAdjusting DN60 : 6,4 to 7,4m3/hourAdjusting DN80 : 11 to 12,5m3/hourAdjusting DN100 : 14 to 19m3/hourAdjusting DN150 : 40 to 48m3/hourAdjusting DN200 : 100m3/hourMax pressure : 25 barsMax fluid temperature : 110°C Drop pressure : 0,01 barHysteresis : 15% Connector F 3/4Connector M1/2"Dimensions :Length 120mmWidth 38mmHeight with big blade 191mmVertical assembly










Read more
Caractéristiques
Length (mm) 70
Ø DN50 à DN200
Package Height (m) 0.055
Package Width (m) 0.135
Package Length (m) 0.2
Package Weight (kg) 0.47
Product Details
704511

Data sheet

FAB_COM_EQ
ORIGINE FABRICANT
Length (mm)
70
Ø
DN50 à DN200
Package Height (m)
0.055
Package Width (m)
0.135
Package Length (m)
0.2
Package Weight (kg)
0.47
