Neck flange 100 PN10- DIFF - 110191

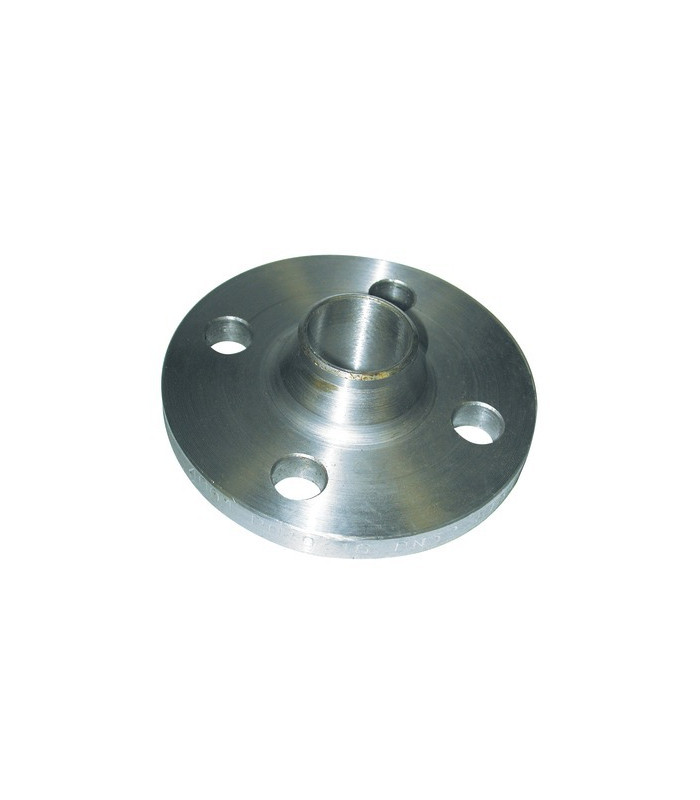

Steel collared flange for welding raised upright joint face 4004 PN10 Manufacturing according to EN 1092-1 standards Marking: A mark is made on each flange Commercial brand, standards, Nominal pressure type, DN, Material, Batch No.
Brand:
€18.65
(tax excl.)
Reference:
Download PDF
110191
Add to wishlist

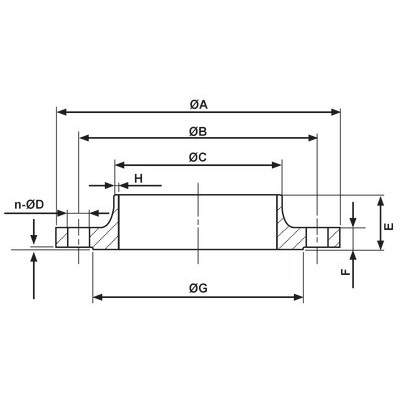

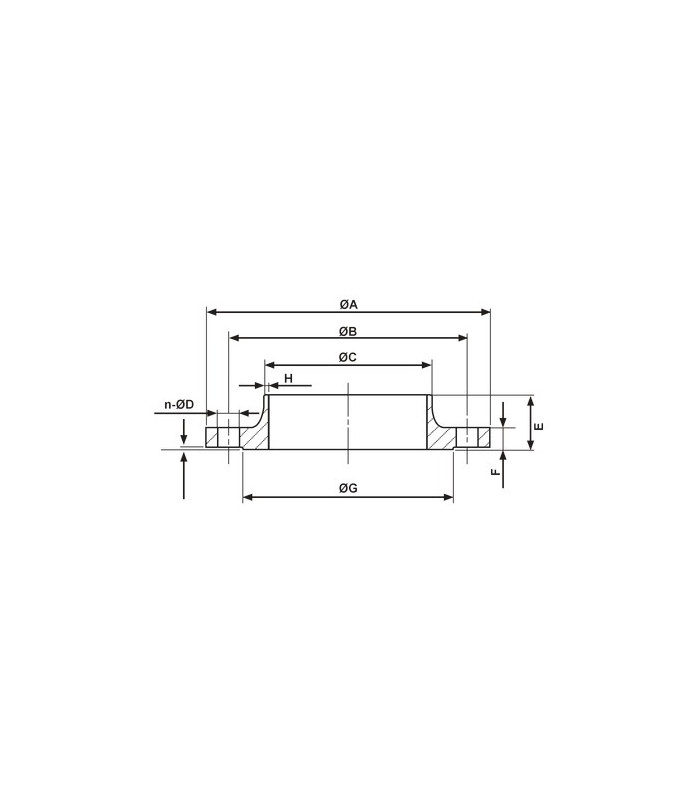

| F (mm) | 20.0 | |
| Mounting | M16 | |
| H (mm) | 2.0 | |
| Ø | 158 | |
| DN | 100.0 | |
| E (mm) | 52.0 | |
| Specifications | PN : 10-16 | |
| D (mm) | 18.0 | |
| A (mm) | 220 | |
| Application | PN : 10-16 | |
| B (mm) | 180.0 | |
| C (mm) | 114.3 | |
| G (mm) | 158 | |
| Number | 8 | |
| Norme | EN1092_1 | |
| Type | BW11/B | |
| Package Height (m) | 0.055 | |
| Package Width (m) | 0.225 | |
| Package Length (m) | 0.225 | |
| Package Weight (kg) | 4.51 |
