Neck flange 200 PN10- DIFF - 110194

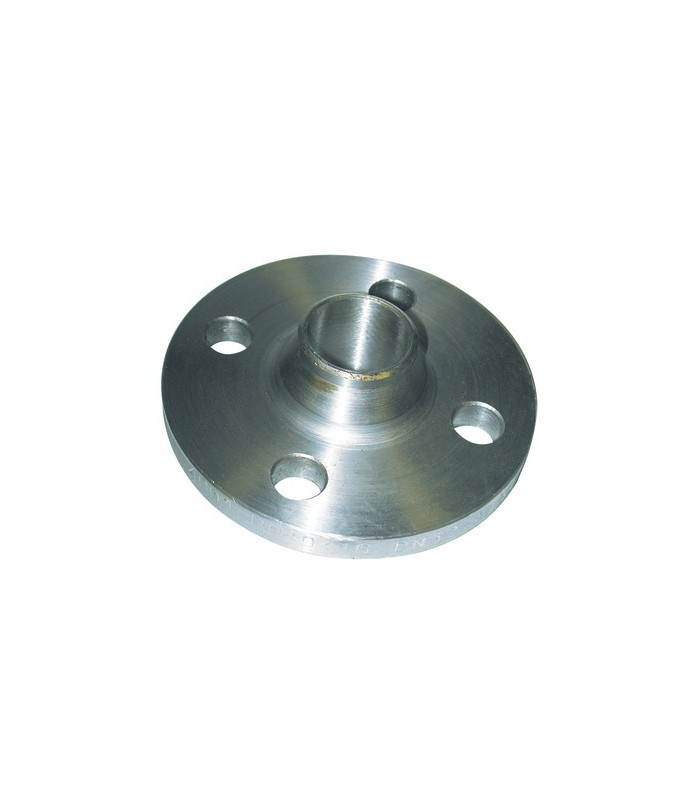

Steel collared flange for welding raised upright joint face 4004 PN10 Manufacturing according to EN 1092-1 standards Marking: A mark is made on each flange Commercial brand, standards, Nominal pressure type, DN, Material, Batch No.
Brand:
€50.24
(tax excl.)
Reference:
Download PDF
110194
Add to wishlist

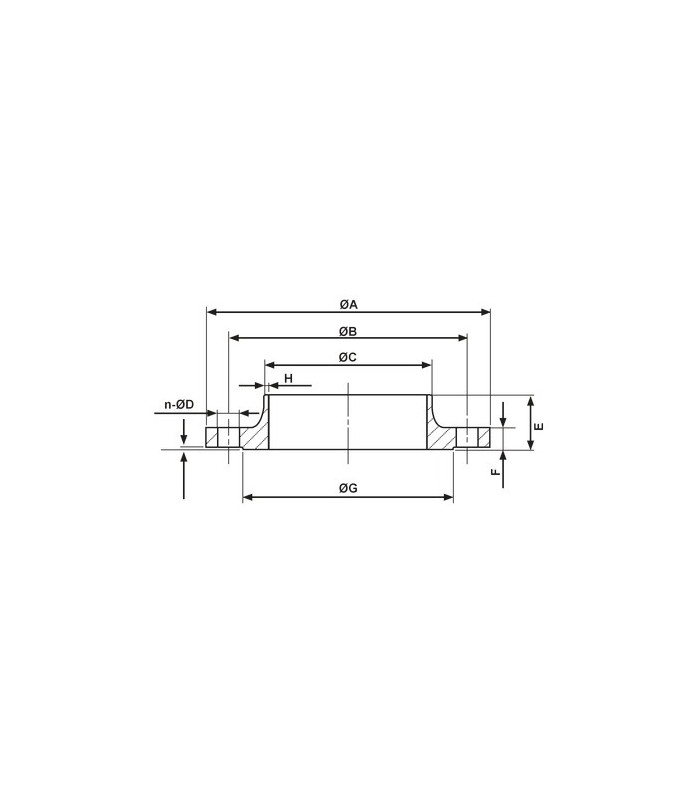

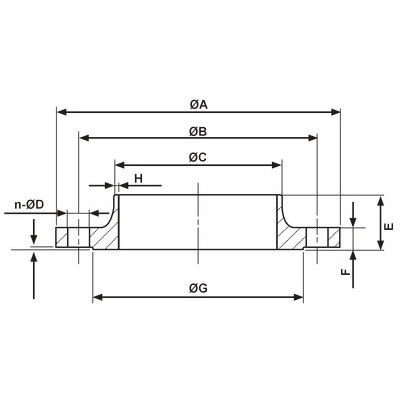

| F (mm) | 24.0 | |
| Mounting | M20 | |
| H (mm) | 2.0 | |
| Ø | 268 | |
| DN | 200.0 | |
| E (mm) | 62.0 | |
| D (mm) | 22.0 | |
| A (mm) | 340 | |
| B (mm) | 295.0 | |
| C (mm) | 219.1 | |
| G (mm) | 268 | |
| Number | 12 | |
| Norme | EN1092_1 | |
| PN (bar) | 16 | |
| Type | BW11/B | |
| Package Height (m) | 0.063 | |
| Package Width (m) | 0.34 | |
| Package Length (m) | 0.34 | |
| Package Weight (kg) | 11.58 |
110194
Data sheet
- FAB_COM_EQ
- ORIGINE FABRICANT
- F (mm)
- 24.0
- Mounting
- M20
- H (mm)
- 2.0
- Ø
- 268
- DN
- 200.0
- E (mm)
- 62.0
- D (mm)
- 22.0
- A (mm)
- 340
- B (mm)
- 295.0
- C (mm)
- 219.1
- G (mm)
- 268
- Number
- 12
- Norme
- EN1092_1
- PN (bar)
- 16
- Type
- BW11/B
- Package Height (m)
- 0.063
- Package Width (m)
- 0.34
- Package Length (m)
- 0.34
- Package Weight (kg)
- 11.58
